MiSTer FPGA Pre-configured Bundle (with Aluminum Armor)

MiSTer FPGA Pre-configured Bundle (with Aluminum Armor)

MiSTER FPGA
Regular price $515.00
Shipping calculated at checkout.
Color
Style
Out of stock - Back in soon

Analog Pro bundles are here! Reference-quality analog audio and video for MiSTer FPGA!

Experience the superior performance and protection of the MiSTer FPGA Pre-configured Bundle (with Aluminum Armor). Designed with the passionate user in mind, this bundle has already received rave reviews from satisfied customers all over the world. The case is even used by some of your favorite developers! The industrial-grade DE10-nano FPGA boasts a high max temperature rating of 100C. Trust in the durability and functionality of this top-of-the-line bundle.

No fan. No dust. No noise.

MiSTer doesn't require active cooling. These kits can be left on 24/7 with any core. Core to core temperature variation is minimal.

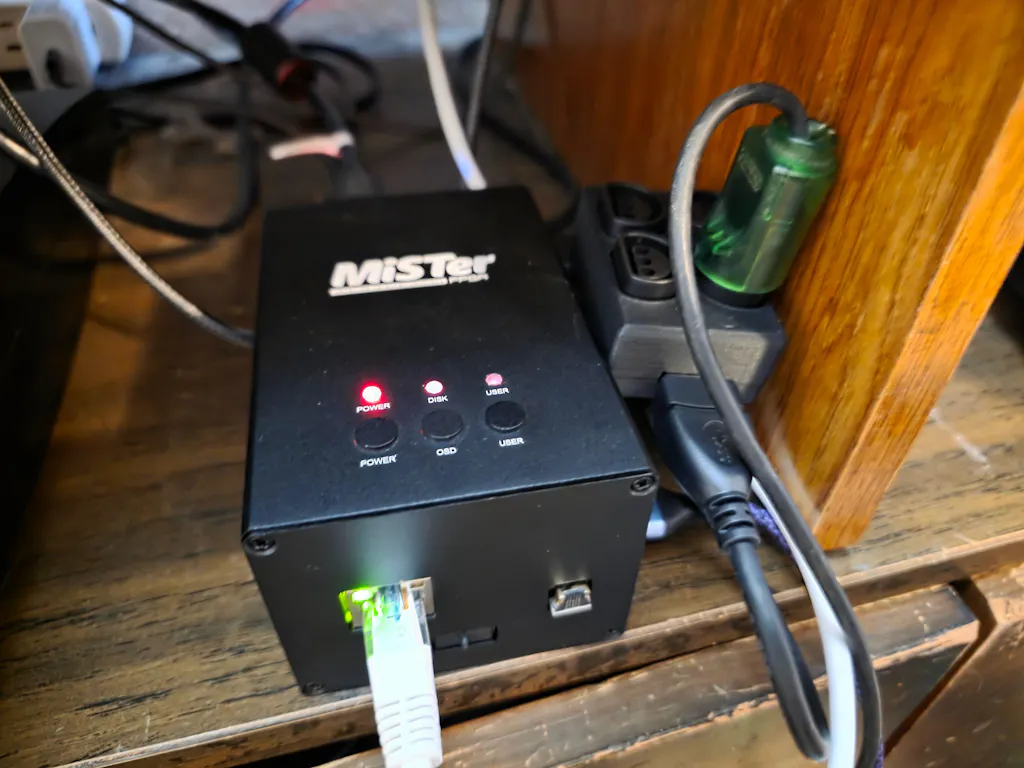

The case is the heatsink, dissipating internal heat to the exterior.

Analog Pro IO kits output analog video + HDMI simultaneously and can only use a single SDRAM module. The power button is experimental but has worked well in my testing. Occasionally the button might double-press, which requires an additional press to toggle power.

Digital IO kits do HDMI or analog video (HDMI2VGA adapter required, like the Reflex Prism) and come with dual SDRAM modules.

All kits can be upgraded to the other IO board by simply replacing the rear panel.

Everything you need, pre-assembled and tested, in one tidy package!

Includes:

Instructions: https://misteraddons.com/pages/guide

MiSTer.ini Settings

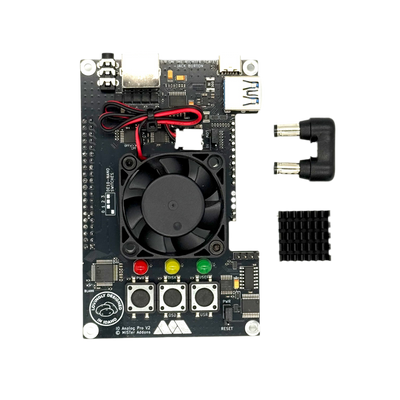

IO Analog Pro

The IO Analog Pro board can output several different analog video formats, but not all simultaneously. Use the table or text blocks below to configure the MiSTer.ini file on your micro SD card. For testing purposes, I have 4 separate .ini files on a single card that I can easily switch between using controller button combos. Most users will probably want to modify their single MiSTer.ini file according to their desired video format.

240p RGBs (also for HDRetroVision cables)

[MiSTer]
forced_scandoubler=0
vga_mode=rgb
composite_sync=1
vga_sog=0

480p RGBs (requires Saturn to VGA and a monitor that supports composite sync)

[MiSTer]
forced_scandoubler=1
vga_mode=rgb
composite_sync=1
vga_sog=0

240p YPbPr/Component video

[MiSTer]
forced_scandoubler=0
vga_mode=ypbpr
vga_sog=1

240p S-Video + Composite Video

[MiSTer]
forced_scandoubler=0
vga_mode=svideo
ntsc_mode=0
composite_sync=1
vga_sog=0

Thermal characteristics

These measurements were performed in 2020, just before the case was released. Since that time, thousands have been sold and used all around the world. Rest assured the case provides both adequate cooling and protection. The FPGA used by the DE10-nano has a max temp rating (TJmax) of 100C. It's an industrial-class device and this aluminum armor is the best enclosure for it.

More details here
