MiSTer FPGA IO Analog Pro

MiSTer FPGA IO Analog Pro

MiSTer Addons
Regular price $65.00
Shipping calculated at checkout.
Style
In stock - Ready to ship

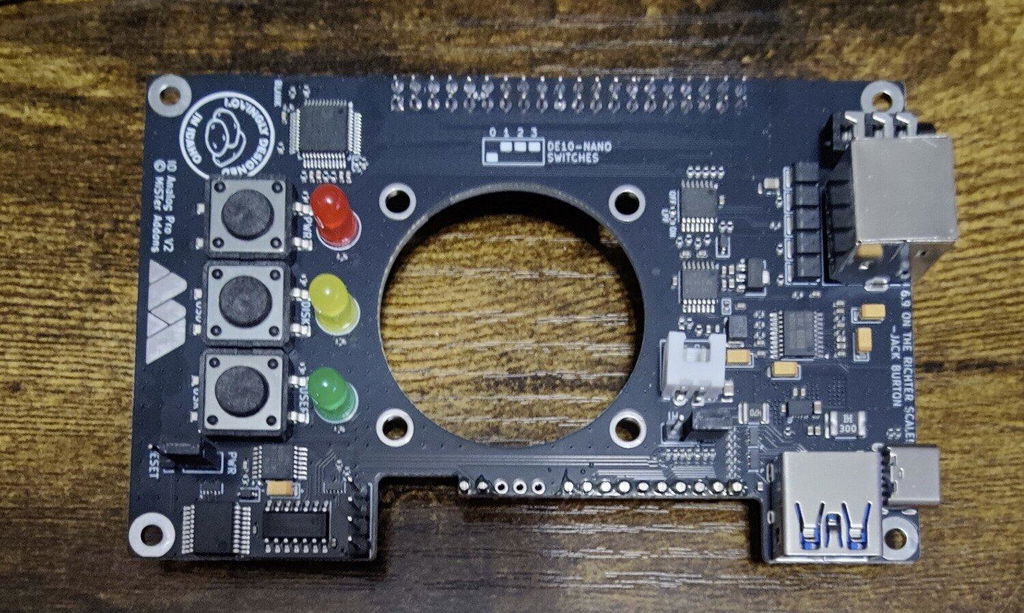

Unlock the analog potential of MiSTer FPGA with IO Analog Pro! Boasting accurate analog video, crystal clear analog audio, soft power toggle, and compatibility with the incredible MiSTer passively cooled aluminum armor case. Existing case owners can purchase a replacement rear panel.

Features

  • Reference-quality analog video and audio via Sega Saturn AV port
    • 99% accurate to specifications
    • RGBs
    • YPbPr** with improved sync levels and correct 700mV Luma
    • S-Video** (native YC core support)
    • Composite Video** (native YC core support)
    • DIPs to enable 24-bit video depth (Enabled by default)
    • Hi-Fi analog audio
  • Mini TOSLINK digital audio
  • USB-C power for use with soft power toggle button (experimental). Might need an extra tap every once in a while :). USB C expects 5V 2-3A. It works with USB-A and USB-C cable types. Check your power supply if you’re not sure. DC power jumper is used to route power to the USB hub from the DE10-nano.
  • ADC-In (integrated into the rear 3.5mm port)
  • User port for SNAC and mt32-pi
  • Simultaneous analog and HDMI output
  • Single SDRAM support
    • Looking for dual SDRAM IO board, and don't mind giving up simultaneous HDMI and analog video? Check out my upcoming IO Direct! No cores currently require dual SDRAM. Jaguar (alpha), Saturn (beta), and Williams Y/Z unit arcade machines (upcoming) all need or benefit dual SDRAM.

** Use alternate INI files to switch between analog video formats (MiSTer_xxxx.ini)

Recommended Accessories

Video measurements

Note: All non-MiSTer Addons measurements were taken by Kuro Houou.

DE10-nano Configuration

To choose between Mini TOSLINK digital audio, and the hifi analog audio DAC, toggle the DE10-nano's switch 0 [SW0]. Choose the position closest to the PCB edge for digital audio, and the position closest to the center of the PCB for analog audio.

The DE10-nano should be configured for different IO boards as follows:

Build SW3 SW2 SW1 SW0
IO Analog Pro (Analog Audio) OFF OFF OFF ON
IO Analog Pro (SPDIF) OFF OFF OFF OFF


MiSTer.ini Settings

This IO board can output several different analog video formats, but not all simultaneously. Use the table or text blocks below to configure the MiSTer.ini file on your micro SD card. For testing purposes, I have 4 separate .ini files on a single card that I can easily switch between using controller button combos. Most users will probably want to modify their single MiSTer.ini file according to their desired video format.

240p RGBs

[MiSTer]
forced_scandoubler=0 ; set to 1 to run scandoubler on VGA output always (depends on core).
vga_mode=rgb ; supported modes: rgb, ypbpr, svideo, cvbs. rgb is default.
composite_sync=1 ; set to 1 for composite sync on HSync signal of VGA output.
vga_sog=0 ; 1 - enable sync on green (needs analog I/O board v6.0 or newer).

480p RGBs (requires Saturn to VGA and a monitor that supports composite sync)

[MiSTer]
forced_scandoubler=1 ; set to 1 to run scandoubler on VGA output always (depends on core).
vga_mode=rgb ; supported modes: rgb, ypbpr, svideo, cvbs. rgb is default.
composite_sync=1 ; set to 1 for composite sync on HSync signal of VGA output.
vga_sog=0 ; 1 - enable sync on green (needs analog I/O board v6.0 or newer).

240p YPbPr/Component video

[MiSTer]
forced_scandoubler=0 ; set to 1 to run scandoubler on VGA output always (depends on core).
vga_mode=ypbpr ; supported modes: rgb, ypbpr, svideo, cvbs. rgb is default.
vga_sog=1 ; 1 - enable sync on green (needs analog I/O board v6.0 or newer).

240p S-Video + Composite Video

[MiSTer]
forced_scandoubler=0 ; set to 1 to run scandoubler on VGA output always (depends on core).
vga_mode=svideo ; supported modes: rgb, ypbpr, svideo, cvbs. rgb is default.
ntsc_mode=0 ; Only for S-Video and CVBS vga_mode. 0 - normal NTSC, 1 - PAL-60, 2 - PAL-M.
composite_sync=1 ; set to 1 for composite sync on HSync signal of VGA output.
vga_sog=0 ; 1 - enable sync on green (needs analog I/O board v6.0 or newer).
