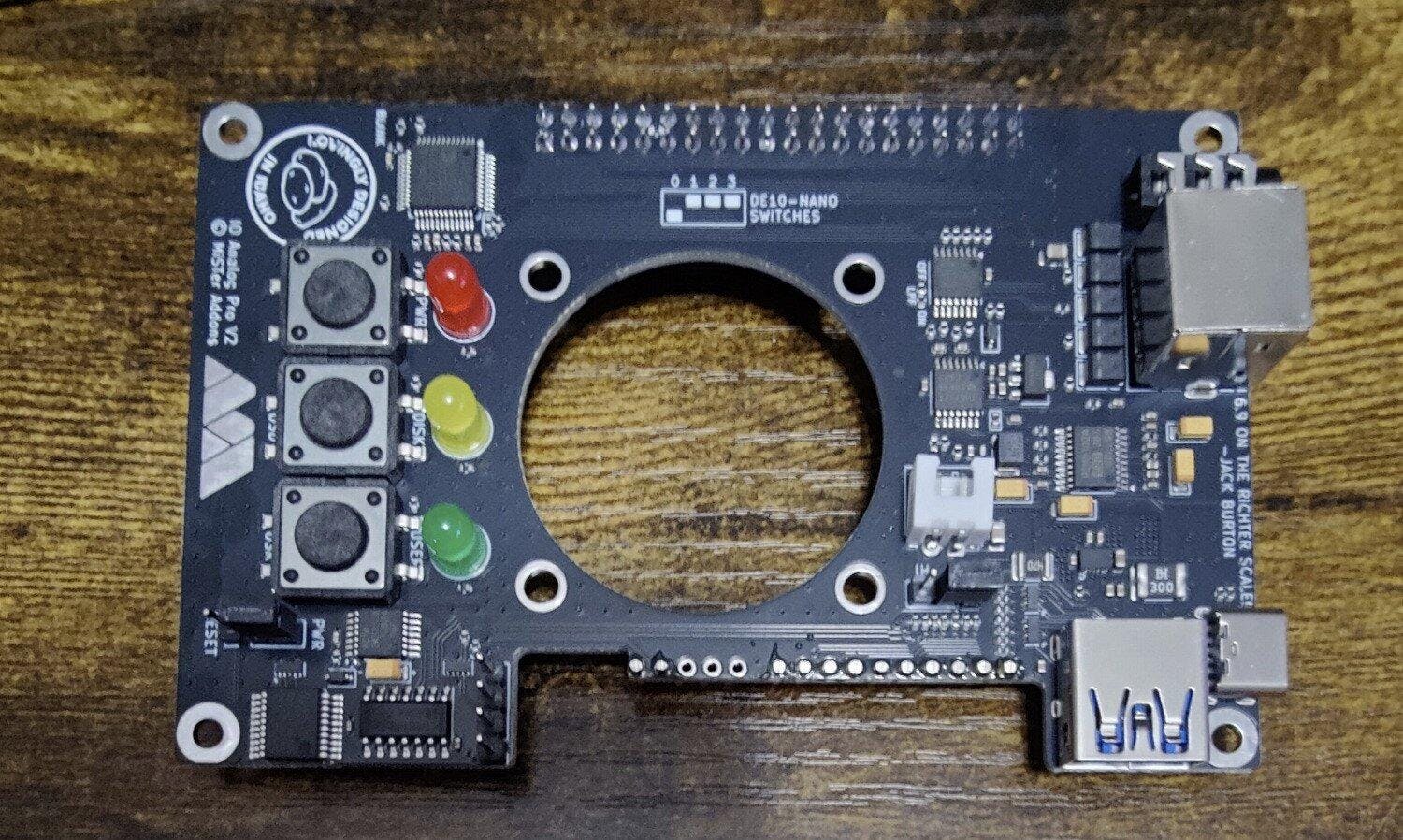

MiSTer FPGA IO Analog Pro
Unlock the analog potential of MiSTer FPGA with IO Analog Pro! Boasting accurate analog video, crystal clear analog audio, soft power toggle, and compatibility with the incredible MiSTer passively cooled aluminum armor case. Existing case owners can purchase a replacement rear panel.
Limited quantities available now. Will keep restocking!
V2.0 Features
- Reference-quality analog video DAC from the Analog ADV7125 24-bit Video DAC via Sega Saturn AV port
- RGBs
- YPbPr with correct 700mV Luma levels
- S-Video (native YC core support)
- Composite Video (native YC core support)
- 0.1% to 1% tolerance resistors for extreme consistency
- Hi-Fi analog audio via Sega Saturn AV port and 3.5mm headphone jack
- USB-C power (5V 2A minimum, 5V 3A limited). It works with USB-A and USB-C cable types. Check your power supply if you’re not sure. DC power jumper is used to route power to the USB hub from the DE10-nano.
- Reset button is now a power toggle button. Want to revert it to Reset? Just move the pin jumper.
- User port for SNAC and mt32-pi
- Simultaneous analog and HDMI output
- Single SDRAM support
- Looking for dual SDRAM IO board, and don't mind giving up simultaneous HDMI and analog video? Check out my upcoming IO Direct! No cores currently require dual SDRAM. Jaguar (alpha), Saturn (beta), and Williams Y/Z unit arcade machines (upcoming) all need or benefit dual SDRAM.
Included Accessories
- DC Power Jumper
- 40mm fan (optional)
- 20mm heatsink (optional)
Recommended Accessories
- Saturn (Mini-Din-10) Universal Video Cable
- Saturn (Mini-Din-10) SCART Video Cable
- Saturn (Mini-Din-10) HD15 VGA Video Cable
- Aluminum Case Rear Panel (running low on some colors - consider black and a Shock+ as an alternative until I can make more).
- Reflex Volt USB PD 1C Power Supply
- 100W USB PD Cable with Power Meter
Configuration
Please refer to the MiSTer.ini section of the Guide page
MiSTer.ini for RGB:
vga_mode=rgb
composite_sync=1
MiSTer.ini for YPbPr:
vga_mode=ypbpr
composite_sync=1
vga_sog=1
MiSTer.ini for S-video and Composite:
vga_mode=svideo
composite_sync=1
Video measurements
Note: All non-MiSTer Addons measurements were taken by Kuro Houou.
MiSTer FPGA IO Analog Pro
Unlock the analog potential of MiSTer FPGA with IO Analog Pro! Boasting accurate analog video, crystal clear analog audio, soft power toggle, and compatibility with the incredible MiSTer passively cooled aluminum armor case. Existing case owners can purchase a replacement rear panel.
Limited quantities available now. Will keep restocking!
V2.0 Features
- Reference-quality analog video DAC from the Analog ADV7125 24-bit Video DAC via Sega Saturn AV port
- RGBs
- YPbPr with correct 700mV Luma levels
- S-Video (native YC core support)
- Composite Video (native YC core support)
- 0.1% to 1% tolerance resistors for extreme consistency
- Hi-Fi analog audio via Sega Saturn AV port and 3.5mm headphone jack
- USB-C power (5V 2A minimum, 5V 3A limited). It works with USB-A and USB-C cable types. Check your power supply if you’re not sure. DC power jumper is used to route power to the USB hub from the DE10-nano.
- Reset button is now a power toggle button. Want to revert it to Reset? Just move the pin jumper.
- User port for SNAC and mt32-pi
- Simultaneous analog and HDMI output
- Single SDRAM support
- Looking for dual SDRAM IO board, and don't mind giving up simultaneous HDMI and analog video? Check out my upcoming IO Direct! No cores currently require dual SDRAM. Jaguar (alpha), Saturn (beta), and Williams Y/Z unit arcade machines (upcoming) all need or benefit dual SDRAM.
Included Accessories
- DC Power Jumper
- 40mm fan (optional)
- 20mm heatsink (optional)
Recommended Accessories
- Saturn (Mini-Din-10) Universal Video Cable
- Saturn (Mini-Din-10) SCART Video Cable
- Saturn (Mini-Din-10) HD15 VGA Video Cable
- Aluminum Case Rear Panel (running low on some colors - consider black and a Shock+ as an alternative until I can make more).
- Reflex Volt USB PD 1C Power Supply
- 100W USB PD Cable with Power Meter
Configuration
Please refer to the MiSTer.ini section of the Guide page
MiSTer.ini for RGB:
vga_mode=rgb
composite_sync=1
MiSTer.ini for YPbPr:
vga_mode=ypbpr
composite_sync=1
vga_sog=1
MiSTer.ini for S-video and Composite:
vga_mode=svideo
composite_sync=1
Video measurements
Note: All non-MiSTer Addons measurements were taken by Kuro Houou.
