MiSTercade V2 Kit | MiSTer FPGA JAMMA Arcade Kit
FIRST BATCH AVAILABLE IN LATE JULY OR EARLY AUGUST! SIGN UP FOR STOCK NOTIFICATIONS!

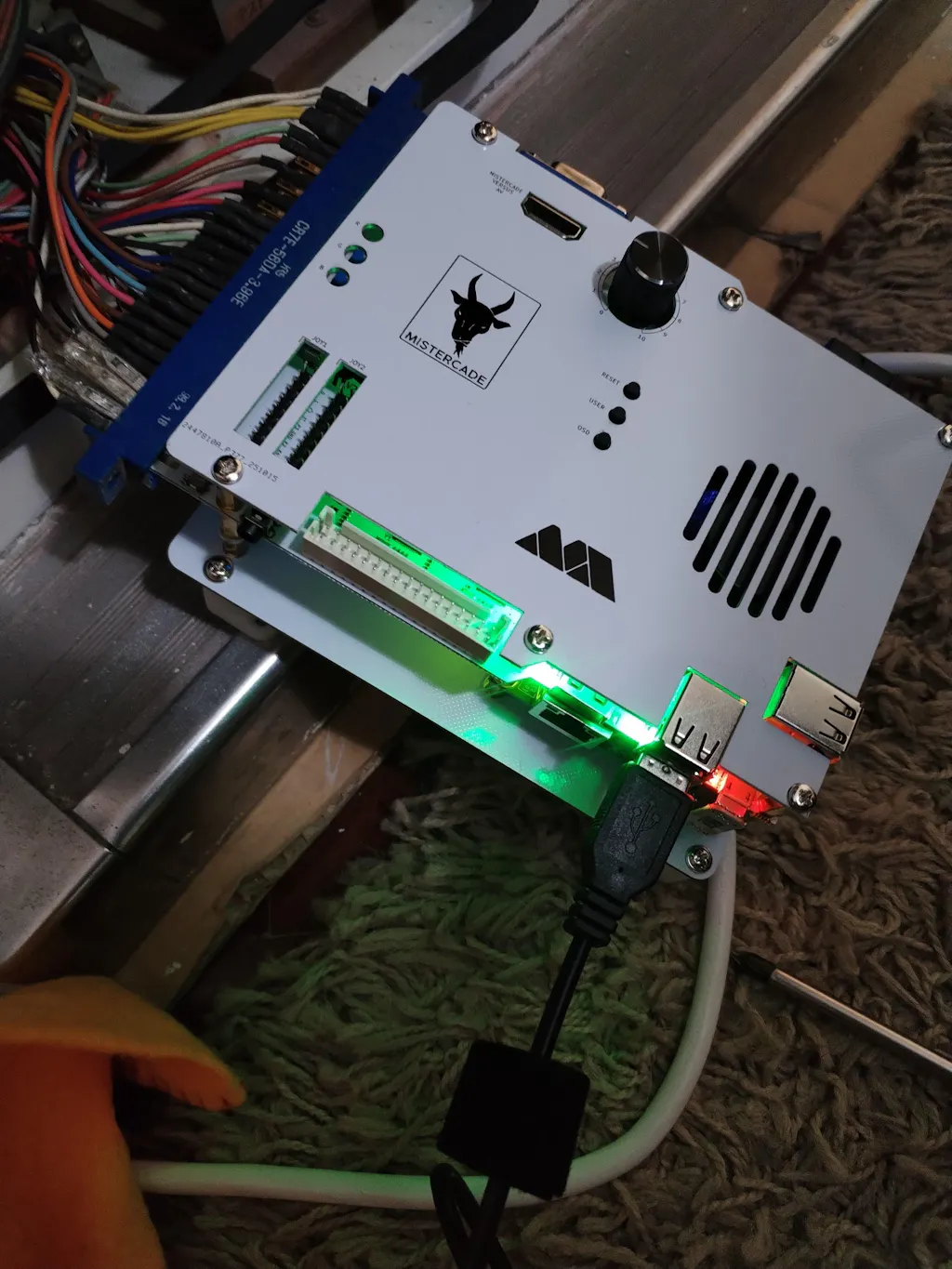

MiSTercade is the original JAMMA extension for MiSTer FPGA. Its best in class design has been enjoyed for more than two years around the world.
Version 2 adds the option for dual SDRAM while integrating a bespoke RGB DAC. Join club MiSTercade today!
Features
- Powered by the incredible GP2040-CE firmware, with average latency of just 0.8ms! Supports 8 buttons per player.
- One device, two configurations:
- Single SDRAM + HDMI + analog output (using analog DAC module in the form of an SDRAM - still in development)
- Dual SDRAM + analog output (HDMI jumper feeds direct video into MiSTercade)
- Accurate, dual/triple video output:
- 0.7V RGB via the HD15 port
- Full range, adjustable, 3.3V video output (same level as Neo-Geo MV1C) via the JAMMA edge

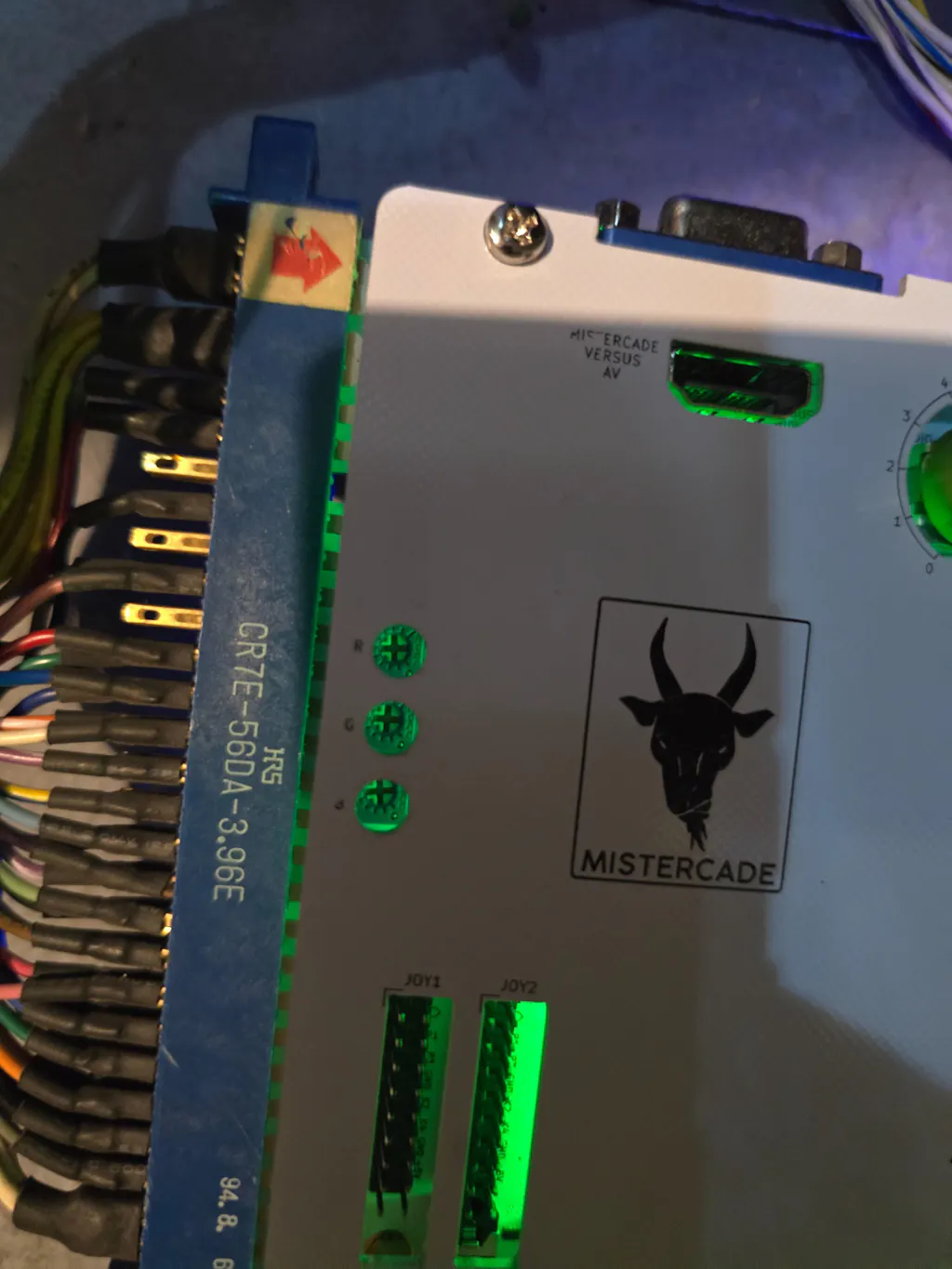

- HDMI port can be used for capture/HDTV usage or can be fed back into MiSTercade for direct video and dual SDRAM
- Crystal clear audio:
- i2s audio DAC
- 13.5W mono audio amplifier
- 3.5mm ,line-level stereo audio
- Digital audio via mini TOSLINK
- (SDRAM DAC module) Move DE10-nano switch SW0 towards middle of PCB for analog audio, leave it in outer position for mini TOSLINK
![](https://cdn.shopify.com/s/files/1/0374/7499/2261/files/Screenshot2023-12-07at10.38.21PM_480x480.png?v=1702014022)
- Black, 4 layer, ENIG finish PCB with edge beveled JAMMA connector
- User I/O port
- 40mm fan
- Reset, User, OSD buttons
- Currently only JAMMA compatible (not JVS)
- All arcade cores have mappings for MiSTercade
- Unlike MAME, MiSTer doesn't have a standardize button layout for arcade cores. This means other MiSTer arcade solutions require mapping each game individually. I've done the heavy lifting for you and include an update script (below) to make future mappings just as easy. More than 2,100 mappings and counting!
- MiSTercade accessories:
- MiSTercade Versus (VS) - connect this base MiSTercade unit to multiple cabinets!
- MiSTercade Remote V1 (Clearance) - control volume, admin buttons, and featuring SNAX for light guns, native controllers, etc.
- MiSTercade Remote V2 - Same as MiSTercade Remote V1, now with a second SNAC port for 2P NES, SNES, PSX, and an RCA port for GunCon support. Point Blank anyone?
- MiSTercade 2P Encoder board - Add 2 more players to your MiSTercade for 4P+ action!
- Arcade cabinet accessories:
- Astro City CPSII Kick Harness
- Fightstick Wire Harness - Great for DIY arcade cabinets!
- Arcade JAMMA Key - Insert it into your connector to prevent plugging in your games the wrong way!
- MiSTercade Vinyl Sticker
- JAMMA Vinyl Sticker
Power Notice
- MiSTercade V2 uses +5V and +12V power supply rails. Please ensure your +5V rail is below 5.4V.
Input
- 7 port USB hub with VBUS power control
- Sub-1 ms controller encoder for 2 players, 8 buttons each
- CPS2 kick harnesses for 1P and 2P buttons 4, 5 and 6
- JAMMA+/CHAMMA wiring for 2L12B at JAMMA edge with non-standard JAMMA wiring
Switch | Function |
COIN1 = COIN2 | Merge coin inputs for 2 player cabinets that share a single coin mech |
JAMMA+ | Allow buttons 4, 5 and 6 to be wired from the JAMMA edge instead of the CPS-II Kick header. |

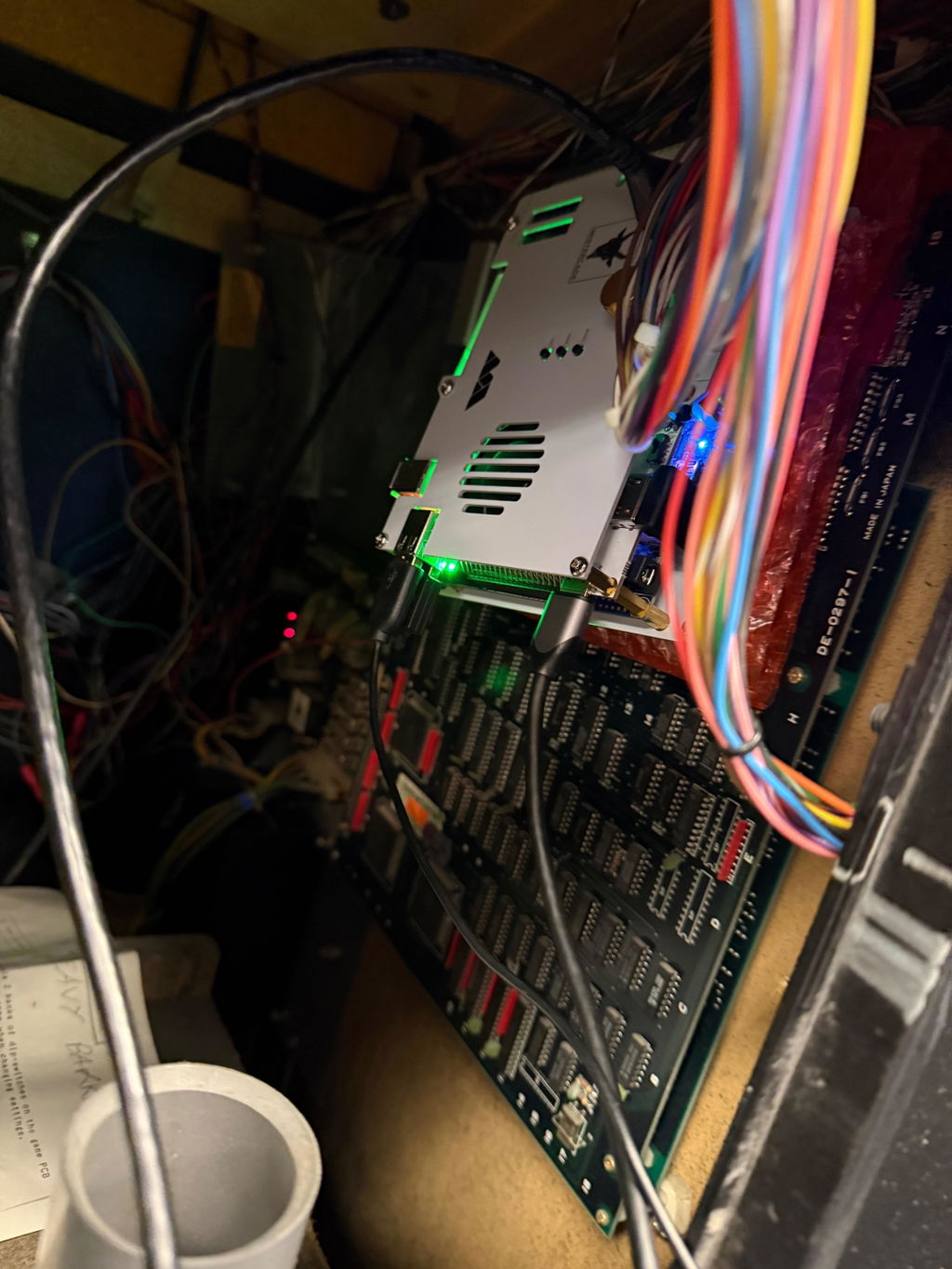

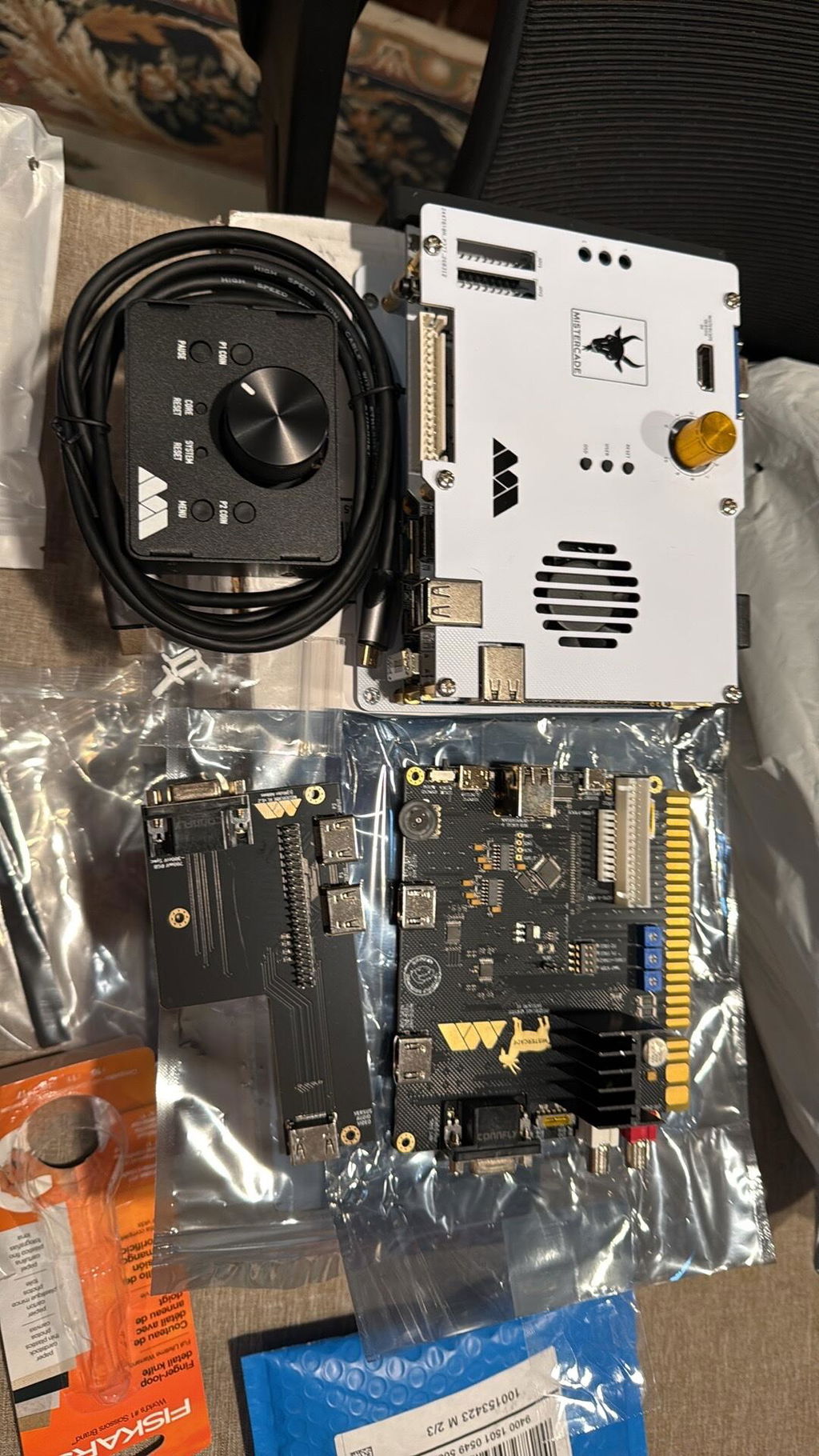

Included with MiSTercade v2.0 Full kit:
- Terasic DE10-nano
- 128MB SDRAM v3.0
- MiSTercade JAMMA PCB
- MiSTercade Top Plate
- MiSTercade Bottom Plate
- Mounting hardware
- 40 mm fan
- 20x20x10 mm heatsink
- USB bridge to connect to DE10-nano
Included with MiSTercade v2.0 Lite kit:
- MiSTercade JAMMA PCB
- MiSTercade Top Plate
- MiSTercade Bottom Plate
- Mounting hardware
- 40 mm fan
- 20x20x10 mm heatsink
- USB bridge to connect to DE10-nano
Accessories:
Configuration
- Choose between single SDRAM with Direct Video or the SDRAM DAC (sold separately), or dual SDRAM with Direct Video. The DAC Module will allow for normal HDMI output just like MiSTercade V1.
![](https://cdn.shopify.com/s/files/1/0374/7499/2261/files/Screenshot_2024-06-25_at_1.25.05_PM_600x600.png?v=1719343520)
Links
As Seen On
- Retro RGB:https://www.youtube.com/watch?v=rmassx9hJP8
- Scarlet Sprites: https://www.youtube.com/watch?v=9-212r6kKC8
- Owlnonymous: https://www.youtube.com/watch?v=yHAW0AfTomA
- DJPsykoM1: https://www.twitch.tv/videos/934909137
- Gillaxian: https://www.twitch.tv/videos/926372300
- PastBlaster: https://www.twitch.tv/videos/942439006
