LOTS OF DETAIL, PLEASE READ CAREFULLY
REQUIRES IO ANALOG 6.1 / IO DIGITAL 1.2 AND NEWER
SNAC is the most direct way of interfacing cores with their native accessories (controllers, light guns, etc). You can not mix and match peripherals between cores. NES core requires NES accessories, etc (technically SNES controller works on NES, but you get the point). If the original hardware could use it, it should work.
SNAX is an updated version of SNAC that adds support for PSX accessories (ONLY SUPPORTS MY PSX CONTROLLER ADAPTERS) as well as support for NES and SNES dual ports just like the original console. Sega consoles will likely forever be single controller port.
| System | SNAC | SNAX |
| NES/Famicom | 1P | 2P |
| SNES | 1P | 2P to 5P* |
| SMS | 1P | 1P |
| Genesis / CD / 32X | 1P (4P with multitap) | 1P (4P with multitap) |
| Saturn | 1P (4P with multitap)** | 1P (4P with multitap)** |
| PC Engine | 1P | 1P |
| PSX | NOT SUPPORTED | 2P to 4P (multitap SNAC port 1)*** |
* Multitap must be plugged into the correct ports relative to original hardware
** Very early Saturn SNAC testing is underway.
*** Virtual Memory Cards are the default save options in the PSX core. Physical memory cards only supported when used with multitap. Save States also work. Rumble is the correct voltage and is generated from the 5V line without any external power adapter. Player 2 must use SNAX port 2 for 2P games, not multitap.
NOTES:
- DOES NOT CONTROL MAIN MENU - NEED USB INPUT METHOD TO NAVIGATE
- Requires controller adapters

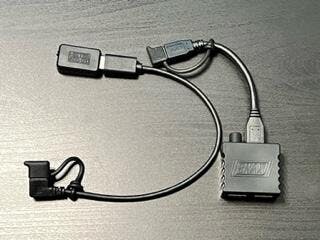

See pictures for included accessories
Supported cores:
- NES
- SNES
- Sega Master System
- Genesis / Sega CD / 32X
- Saturn (preliminary, work-in-progress)
- PSX
- TurboGrafx-16 / TurboGrafx CD
Instructions:
- Load a supported MiSTer core
- Plug controller > hdmi-style adapter > SNAC/SNAX > USB 3 cable > IO board's USB 3 "User" port
- Navigate to the option for controls (name varies per core: “Serial”, “SNAC”, etc.
- Some cores require certain accessories to be used in specific ports. You may need to move the accessory to the other port (SNAX only) or use the “Swap joysticks” option in the core’s menu.
Tested / Working accessories:
- Famicom external controllers
- Famicom 3D Glasses (CRT required)
- NES OEM controllers
- NES Zapper (CRT required)
- NES PowerPad
- SNES OEM controllers (NES and SNES cores)
- SNES Super Scope 6 (using a custom SNES adapter board not currently available) (CRT required)
- SNES Super Multitap (P2-P5 only, P1 can be other port (SNAX only) or USB
- TurboGrafx-16 2-button controllers
- Sega Genesis 3 / 6-button controllers (SMS and Genesis cores)
- Sega Menacer (CRT required)
- Sega Justifier (CRT required)
- Sega OEM Multitap (4 player using a single SNAC port)
- 8BitDo M30 2.4 GHz controller
- Sega Master System Phaser Lightgun
- Sony PlayStation controllers with rumble (requires SNAX)
- Sony PlayStation memory cards (including Pocket Station) (requires SNAX)
- Sony PlayStation neGcon (requires SNAX)
- Sony PlayStation Jogcon (requires SNAX)
- Sony PlayStation GunCon x 2 (requires SNAX)
- Sony PlayStation Hyper Blaster (requires SNAX)
- Sony PlayStation Multitap (port 1 of SNAX only)
Non-working Accessories
- TurboGrafx/PCE 6 button controllers
