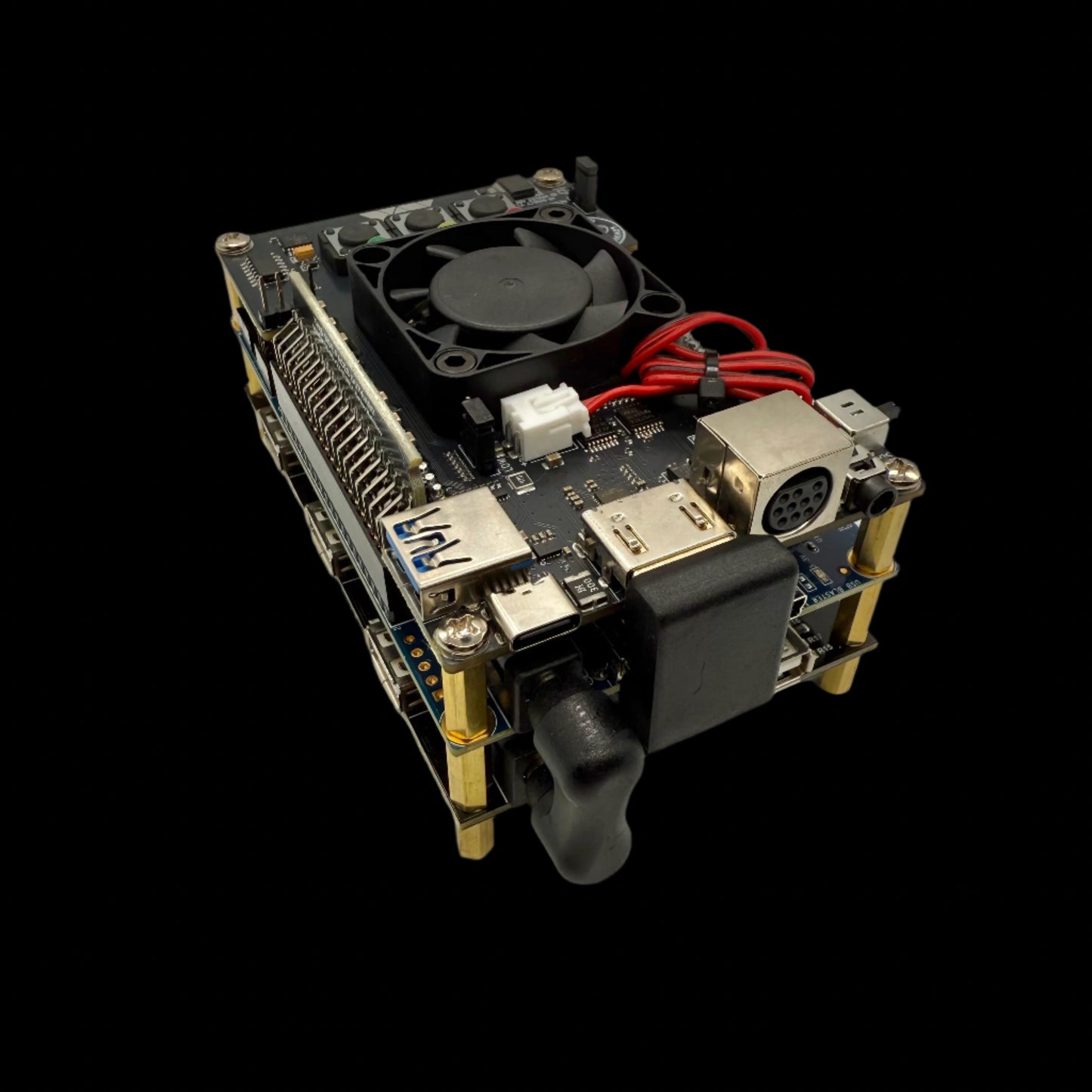

MiSTer Skeleton Kits (No Case)
Regular price
$450.00 USD
Tax included.
Shipping calculated at checkout.
Includes:
- DE10-nano
- 128MB SDRAM (1x)
- USB Hub + bracket
- Power
- DC Jumper (for use with USB C power supply)
- DC Switch + Splitter + 5V DC barrel power supply
- IO Board

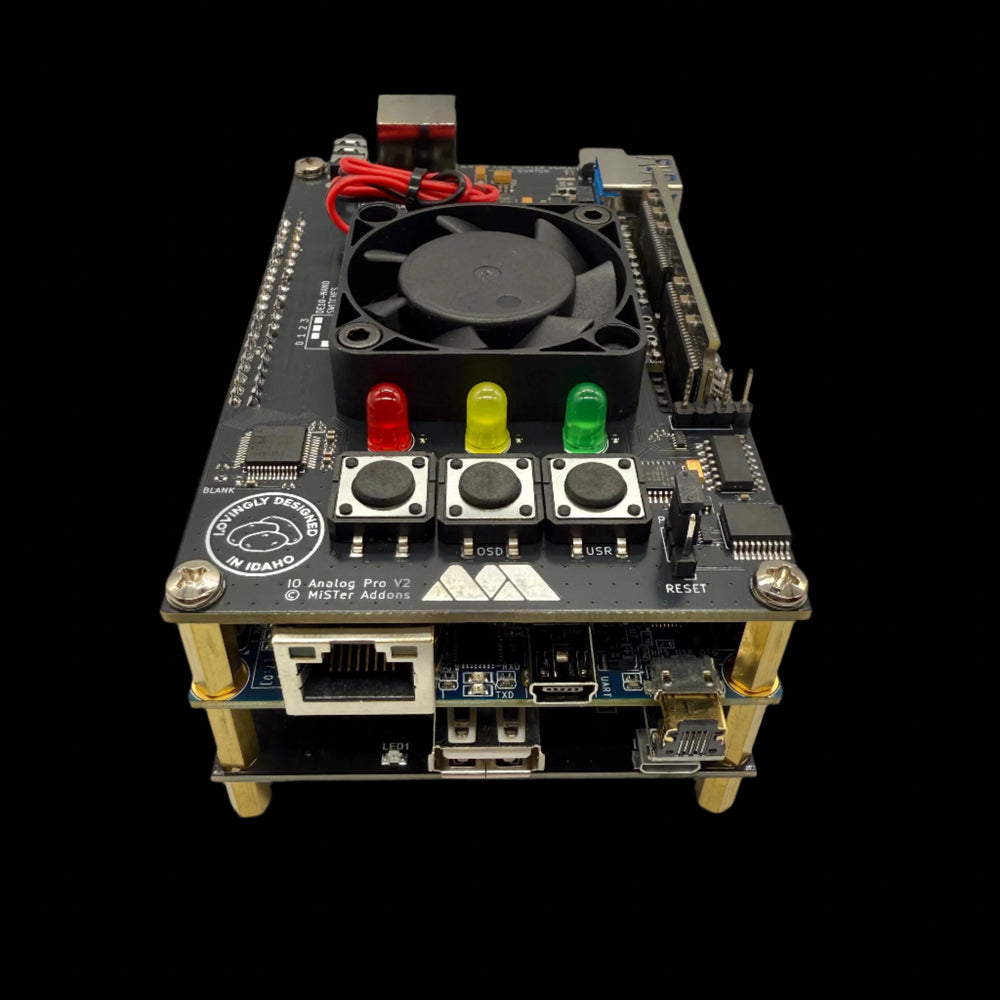

- IO Analog Pro V2.0 (NEW)

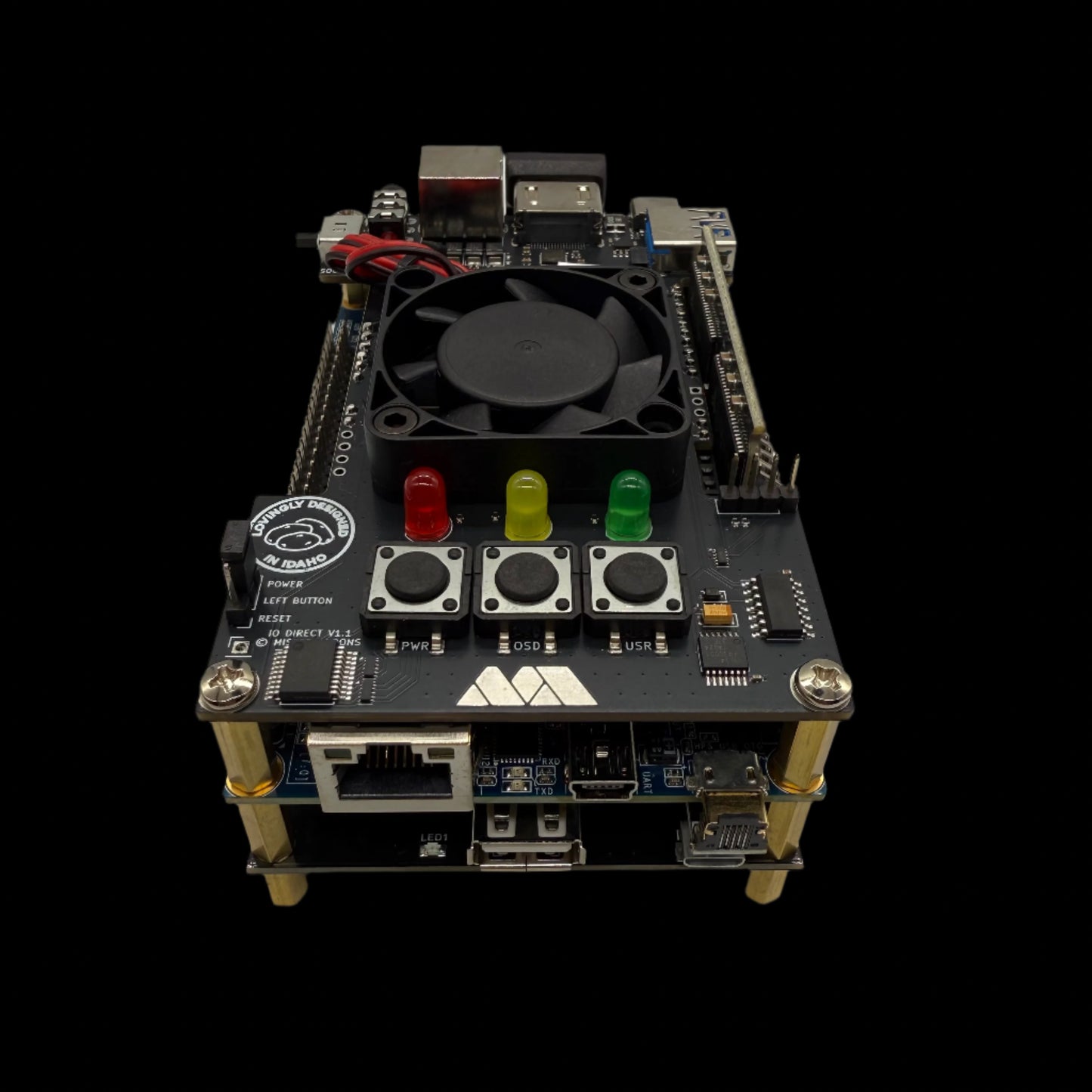

- IO Direct V1.1
-
Reflex Volt 1C Power Supply
- 32GB micro SD card, pre-flashed with open source files
- Higher capacity micro SD cards also available here
Power Instructions:
- USB C Power
- Plug USB-C into IO board's power port
- Connect DE10-nano's DC port to USB hub DC port using the DC jumper
- Use the IO board's "PWR" button to toggle power on and off
- Keep the IO board jumper set to "Power" and use left button to toggle power on and off
- DC Barrel Power
- Plug in Switch + Splitter to both rear barrel power connectors
- Connect 5V DC power supply
- Use the splitter's power switch to control system power
- Move IO board jumper from "Power" to "Reset" to restore button functionality (Power toggle only works with USB C supply)
