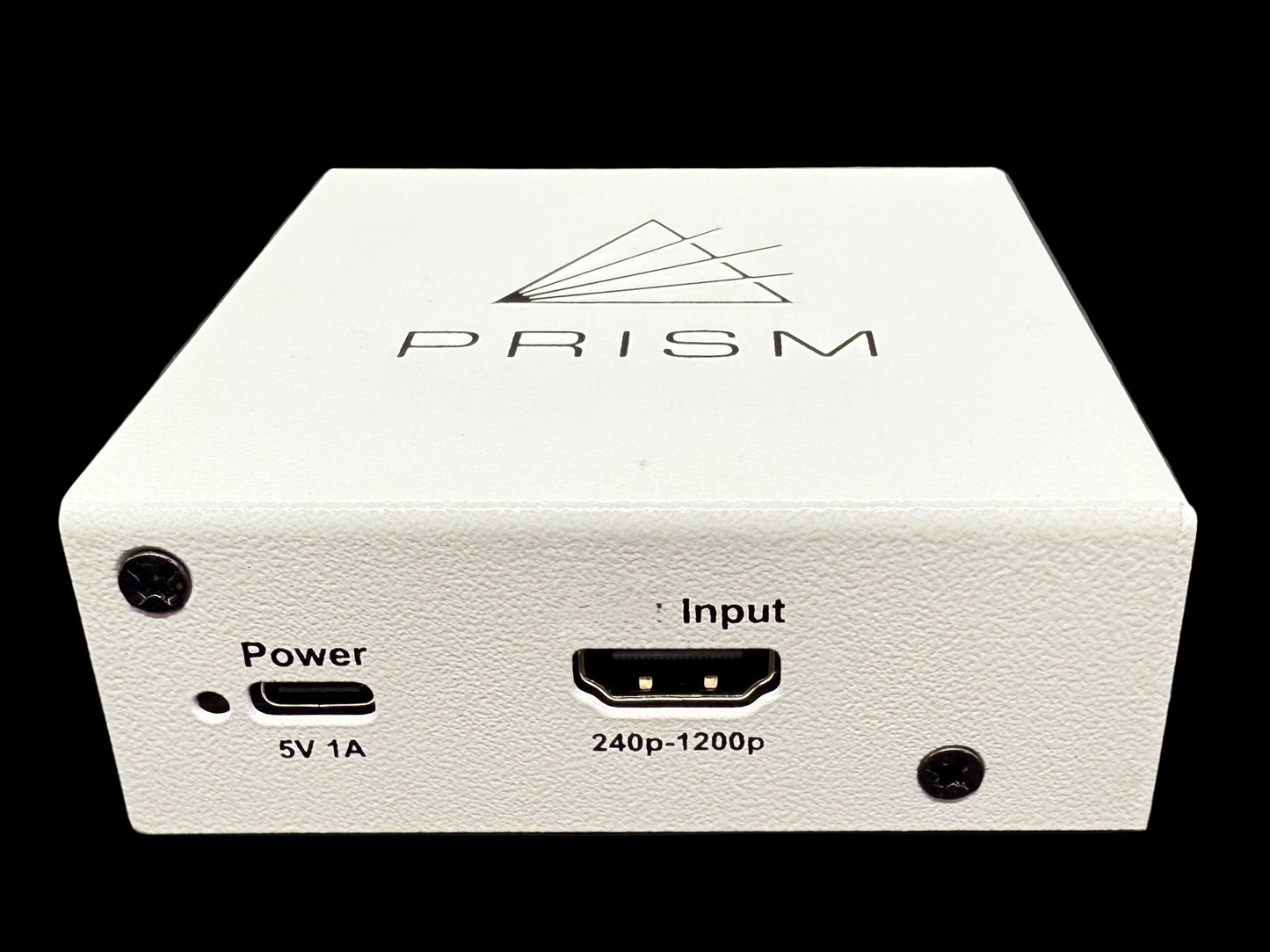

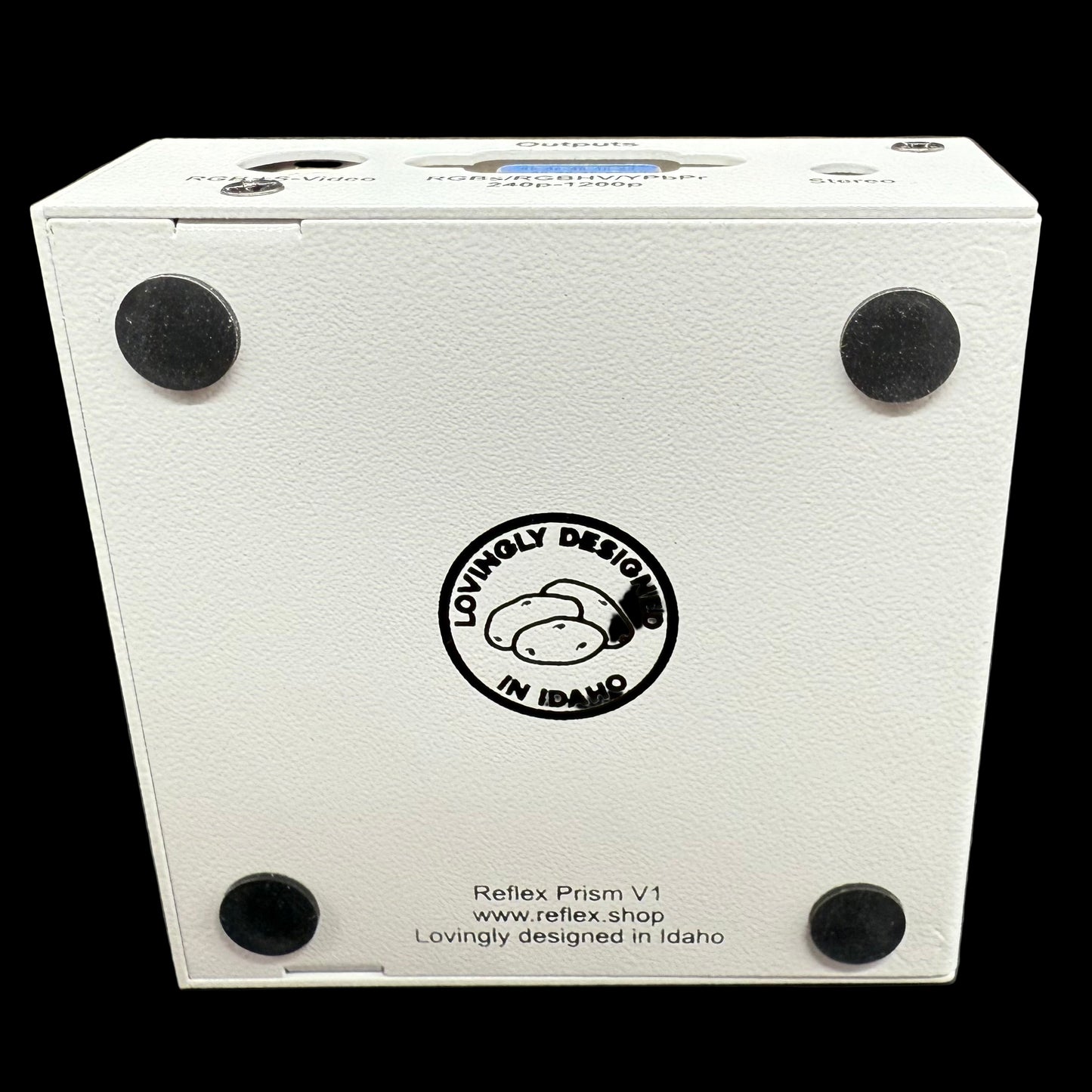

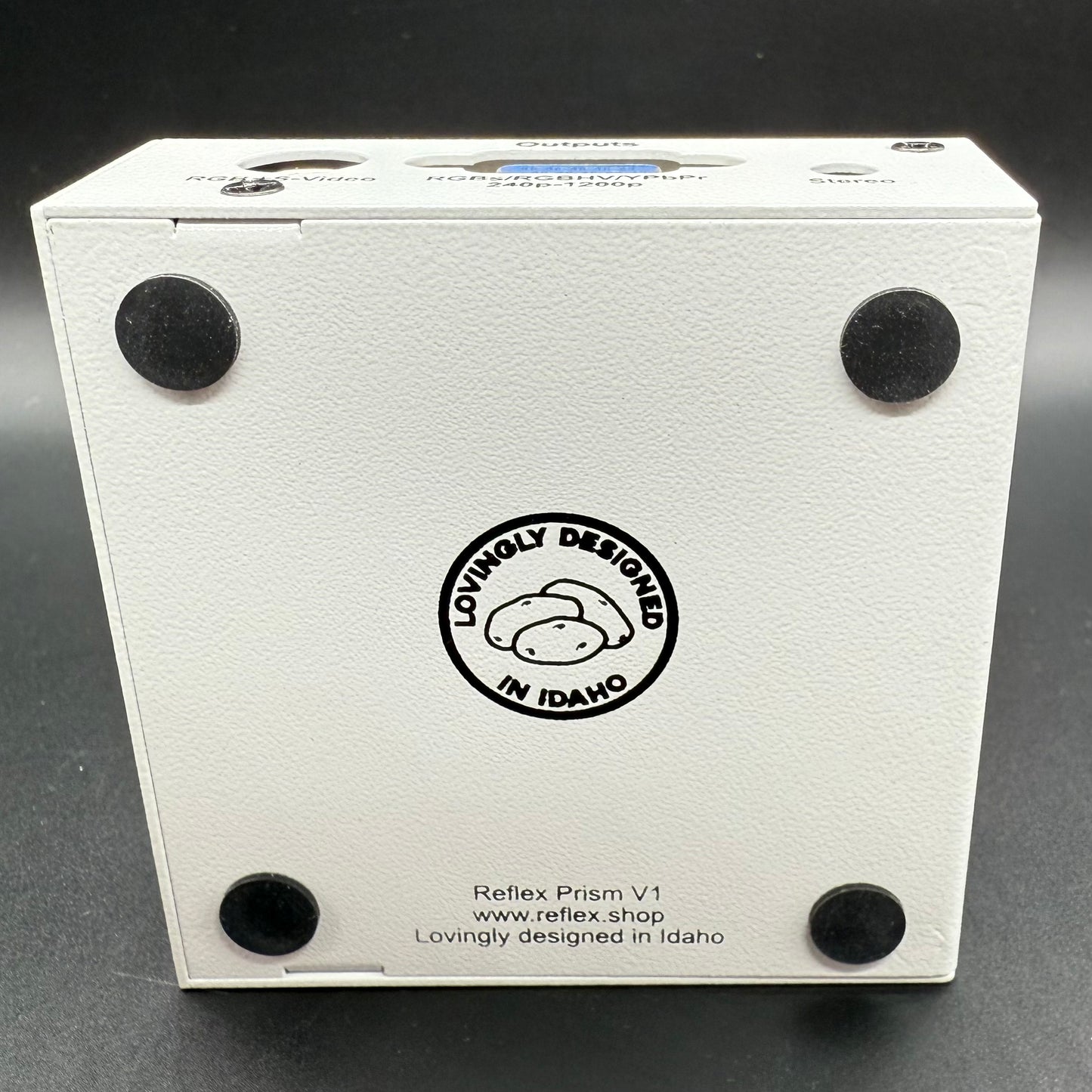

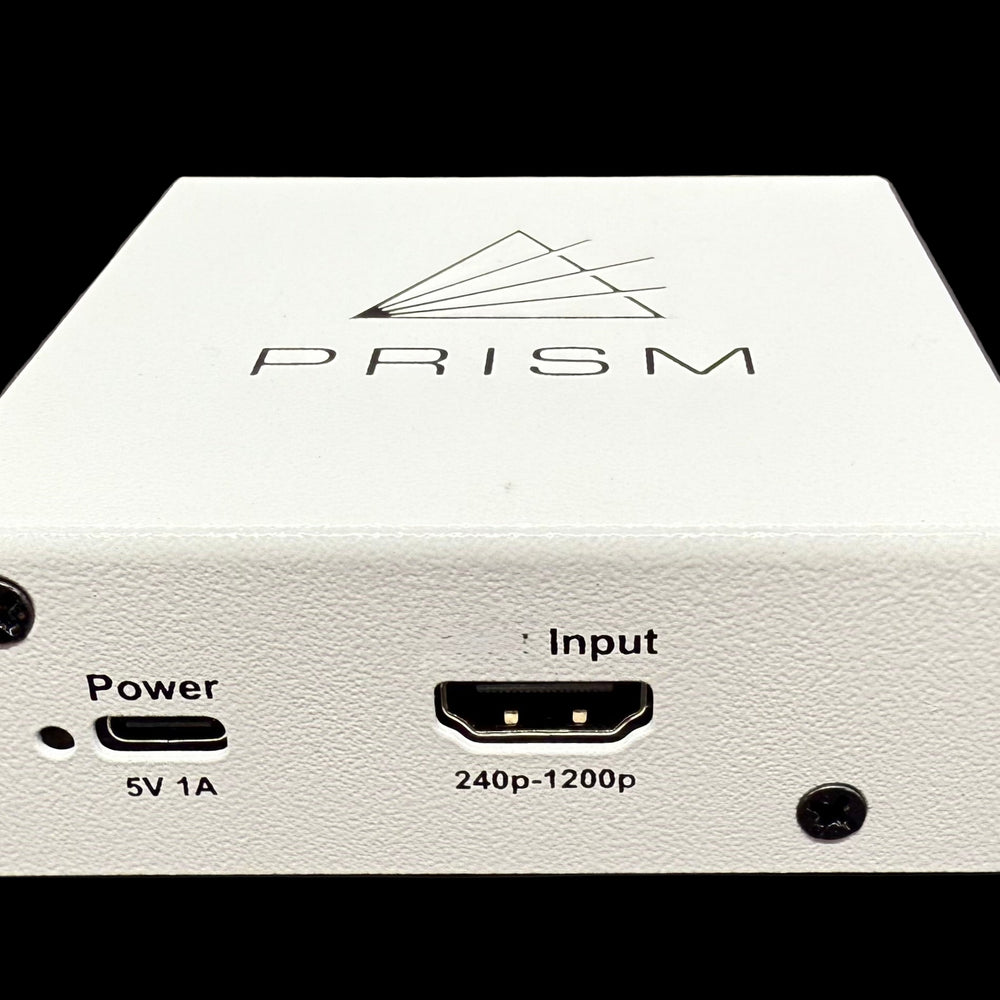

Reflex Prism - Digital Video to Analog Video Converter

$80.00 USD
Tax included. Shipping calculated at checkout.

Back in soon

THE FIRST BATCH OF REFLEX PRISM IS ALMOST HERE! I ordered a small quantity for the first round, as this is a new product. However, I enabled pre-orders for the next batch as a separate variant!

Features:

  • Lag free 1:1 digital video to RGB, YPbPr, and S-Video conversion - no resolution (upscale/downscale), or crop/aspect ratio changes from input to output.
  • Reference quality dual-video output

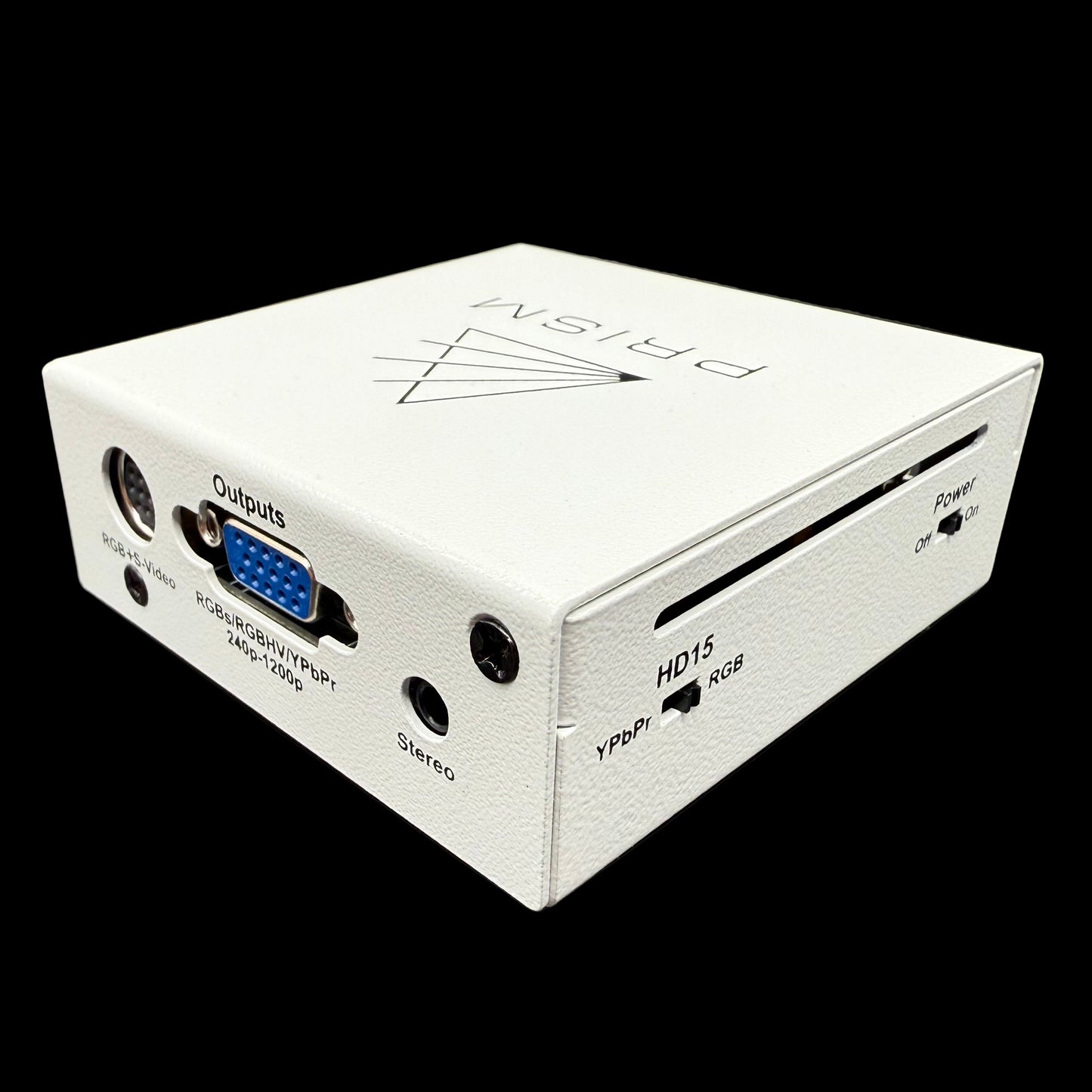

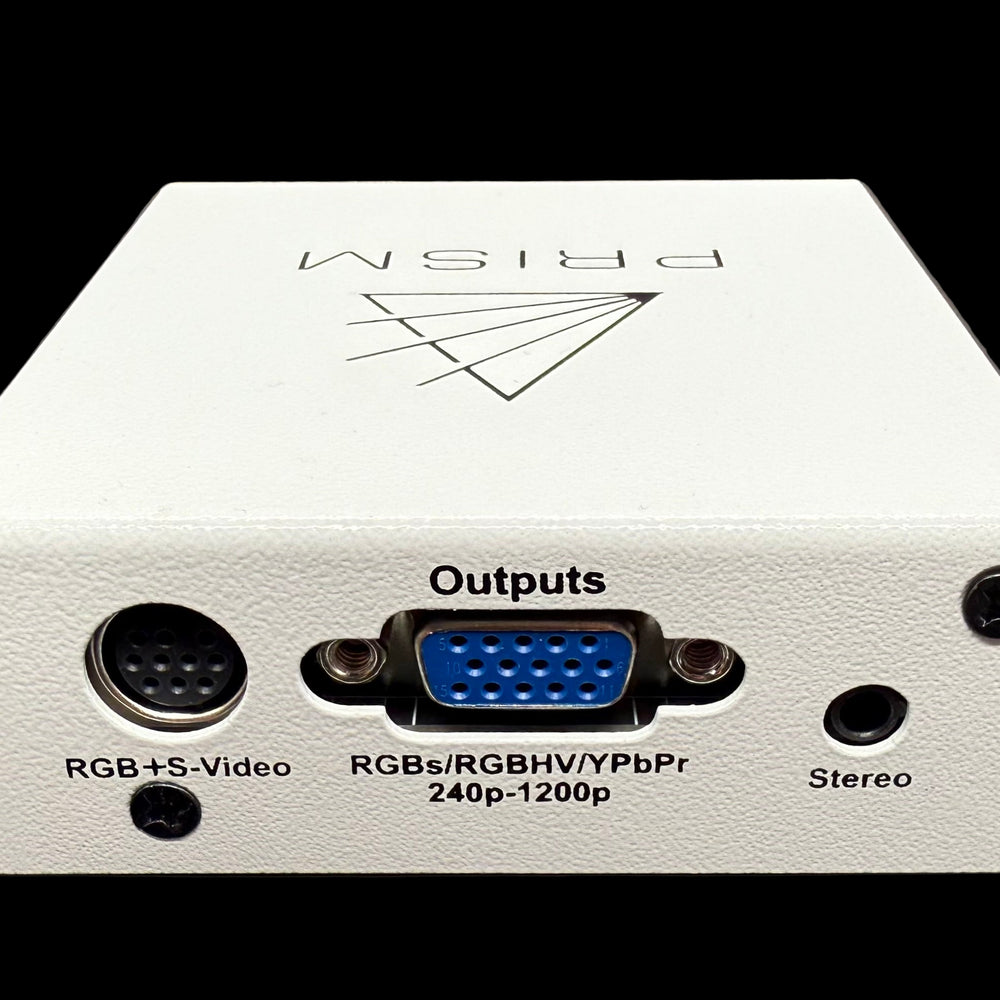

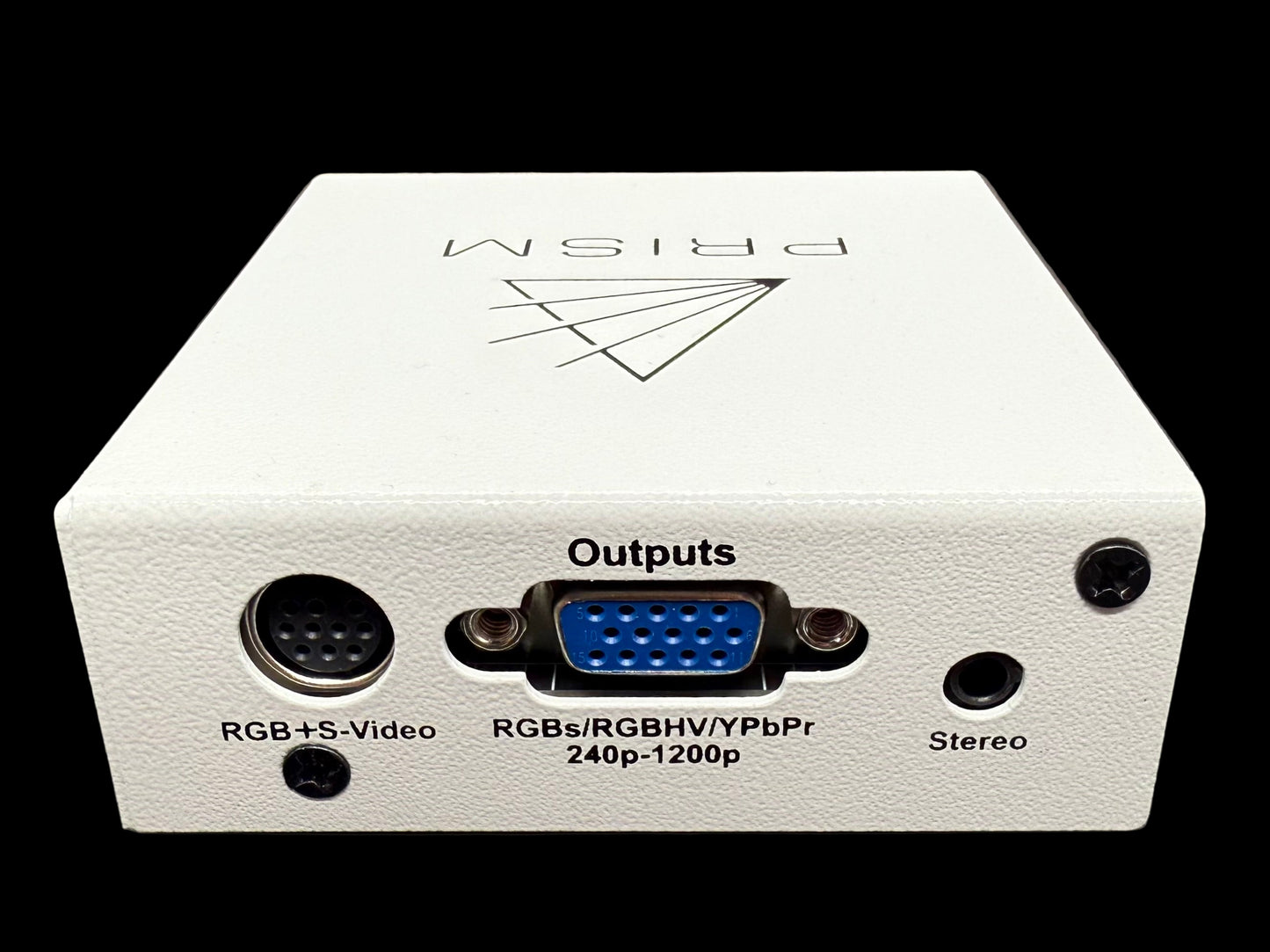

    • HD15 (VGA) port:

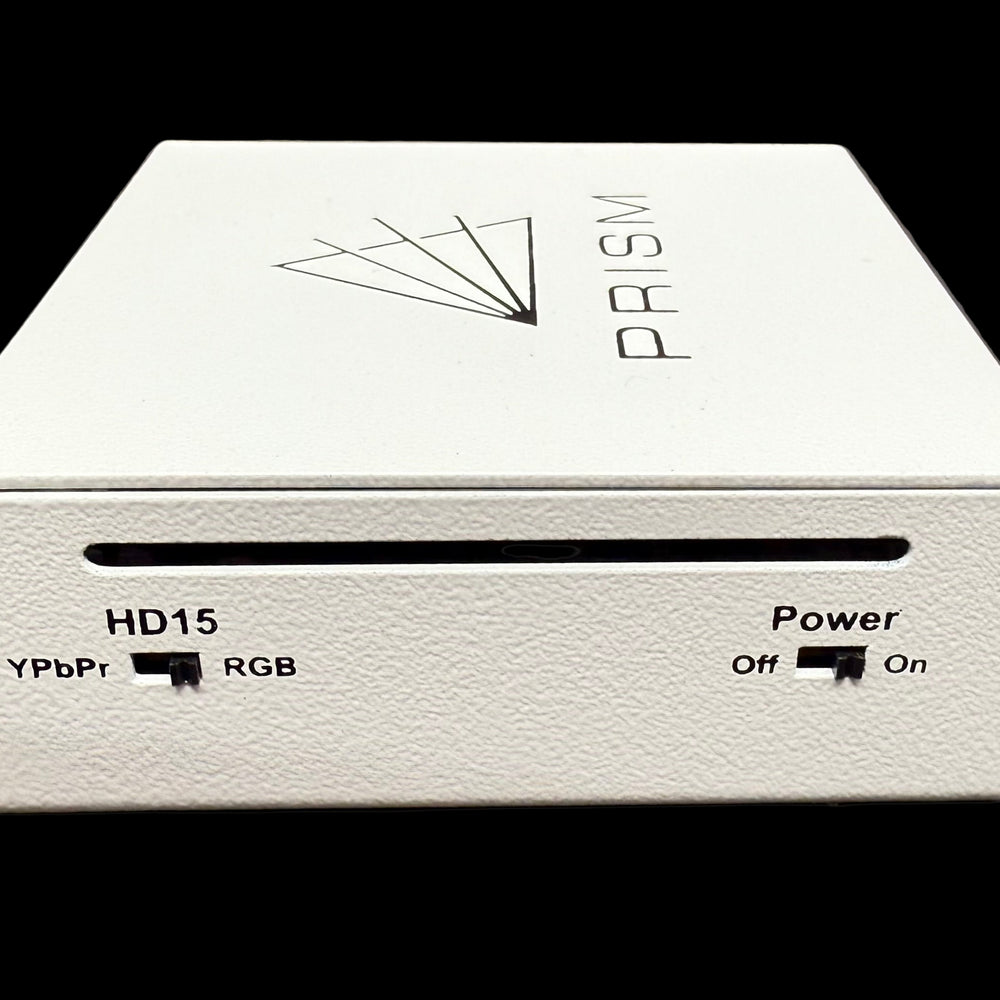

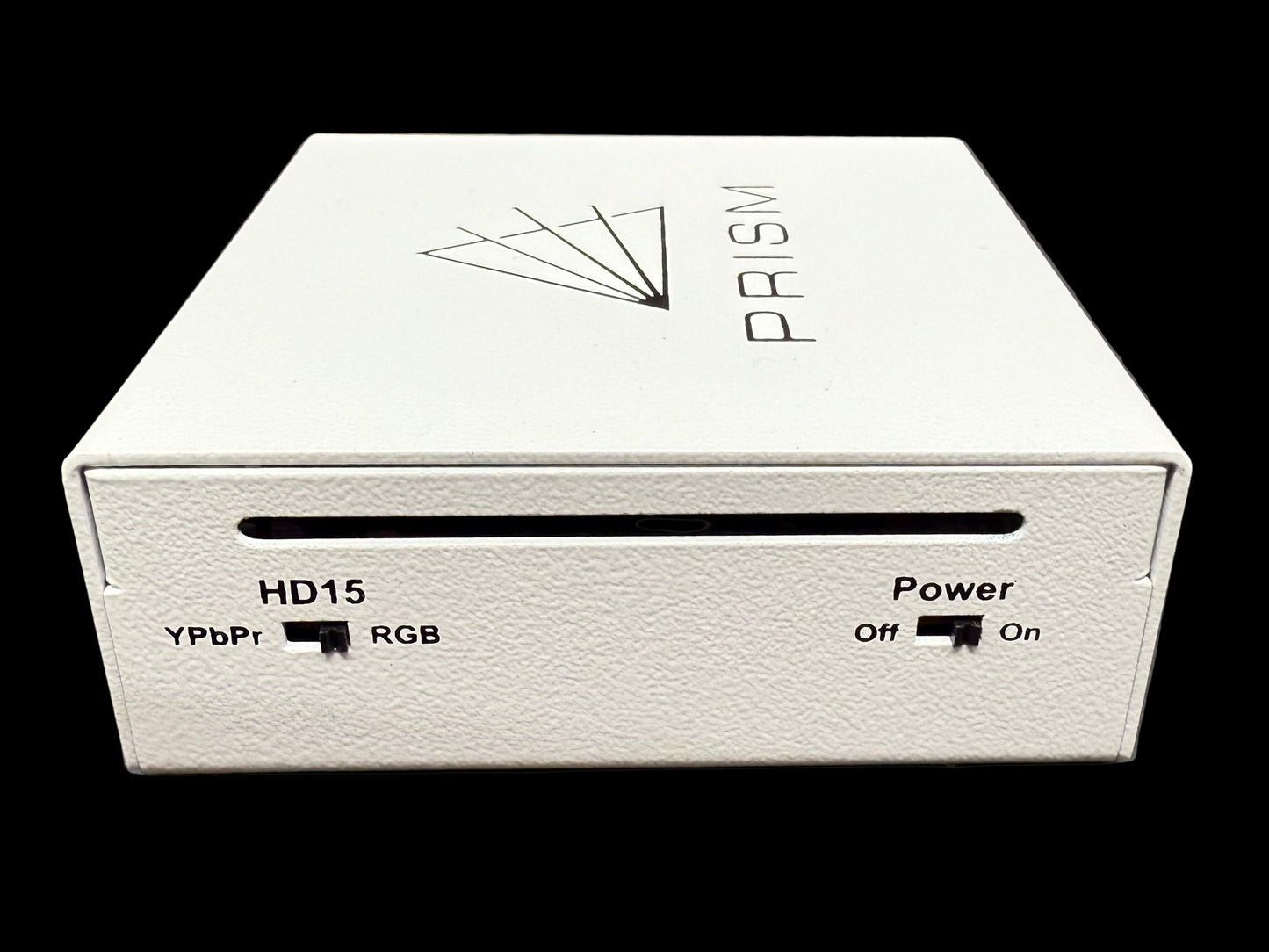

      • RGB or YPbPr (controlled by switch)

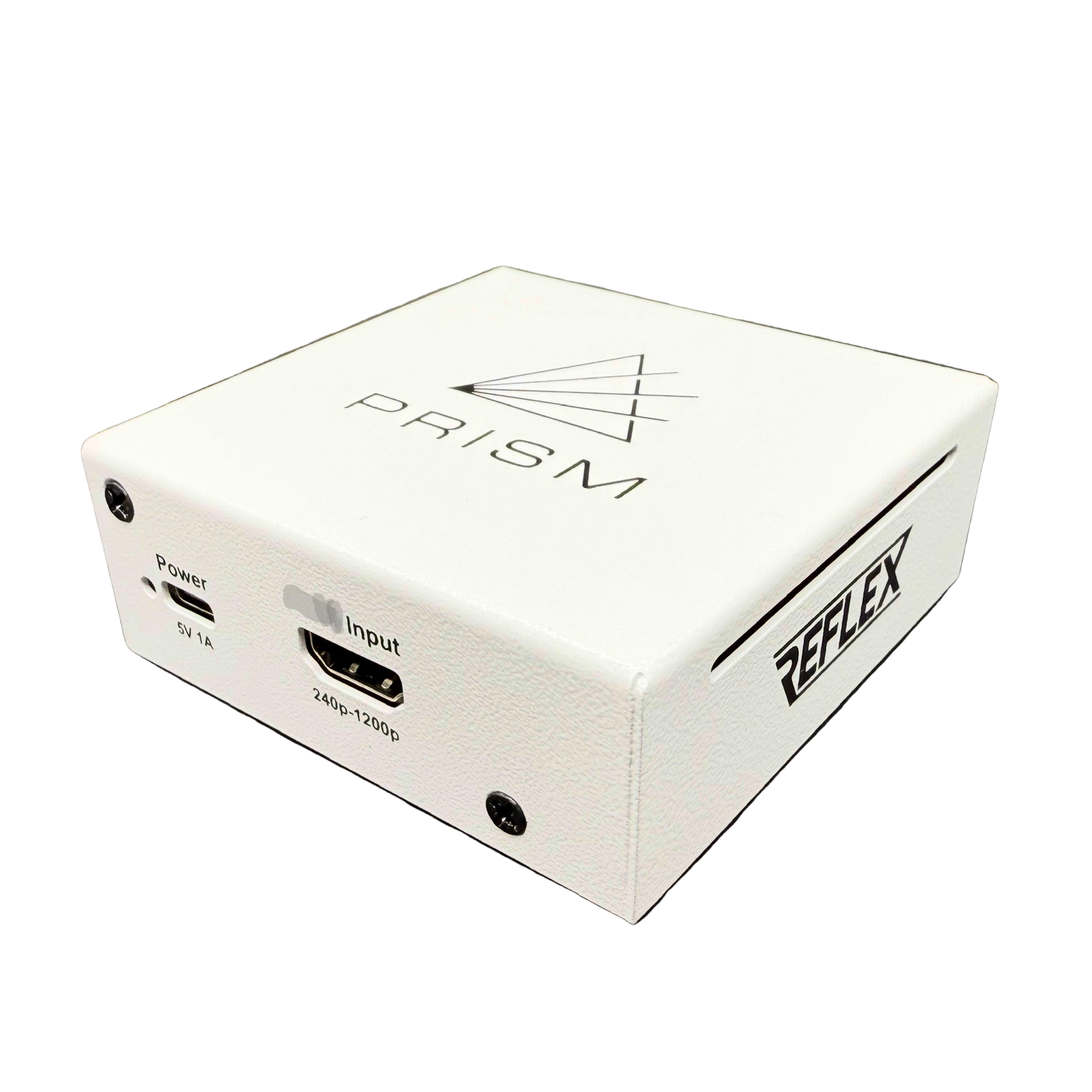

      • Up to 1920x1200 (matches digital video resolution)
      • Use this to convert 480p-1200p digital video to analog video for a high resolution monitor, PC CRT, etc.
    • Mini-Din 10) (Sega Saturn) Port:
      • RGB and S-video simultaneously
      • Composite video is present, but not supported due  to dot crawl
      • 240p/480i only (~240p/15kHz HDMI special resolution)
      • Supported by MiSTer, some HDMI console mods, but not modern PCs, consoles, Raspberry Pi, etc.)
      • Most modern HDMI devices output a minimum 480p resolution with separate sync (HV)
  • HiFi audio output
    • Buffered stereo audio for independent/simultaneous 3.5mm and Mini-Din 10 audio output.
    • The first batch of Prism requires a slim-profile 3.5mm audio cable with recessed outer jacket to clear the enclosure wall.



Includes:

  • Reflex Volt unit
  • USB A Power supply
    • Due to the NTSC encoder used, a clean power supply is required for clean Mini-Din 10 video output. Anker power supplies are also recommended.
    • USB A power supply can power the MiSTer, and the MiSTer’s “Power Only” rear USB ports can power Prism.

Configuration:

  • MiSTer FPGA MiSTer.ini 240p/480i configuration:
    • direct_video=1
      • direct_video=2 for MiSTer updates beyond 11/9/2025 will automatically work with HDMI displays or Prism without changing direct_video settings
    • vga_mode=rgb
      • Prism requires RGB video as the input format. It converts from RGB to YPbPr, and S-Video.
    • composite_sync=1
