Reflex CTRL Original Controller USB Conversion Kits

$25.00 USD
Shipping calculated at checkout.

Selling fast

Elevate your classic gamepads to USB capabilities with Reflex CTRL! Boasting the quickest response times of any USB controller available commercially, Reflex CTRL all but eliminates dropped inputs. Featuring the highly versatile, upgradeable, and customizable GP2040-CE firmware, your gaming will never be the same!

How it works

CTRL boards are PCB replacements with a short USB-C female pigtail cable. Unscrew your controller, remove the OEM circuit board, optionally replace the rubber membranes (coming in 2024?), fit the Reflex CTRL PCB, route the USB-C Female cable, and re-assemble the controller. Users provide their own USB-C cable.

Includes

    Features

    • Open-source, powered by the amazing GP2040-CE
    • 0.8 ms latency
    • Carbon-coated button pads (just like OEM) for consistency and durability
    • ESD protection for all inputs
    • Web GUI for deep customization
    • Update firmware: Enter Web GUI > Reboot > USB (BOOT SEL)

      Installation:

      SNES



      NES

      Basically the same as SNES. Don't route the cable through the posts. Route it directly

      Virtual Boy

      Do not plug the battery or DC power packs into the controller. The controller is powered over USB.

      Saturn

      Take care when closing the controller. The white cable connector may press against the back shell. Shoulder buttons are tactile, not microswitches. Microswitch buttons aren't easy to find. Tested in Japanese controllers, USA model 2 controllers, and Retro-bit licensed wired controllers.

      Configuration

      SNES configuration video

      See following tables for controller specific combos.

      Change modes by holding down a button while plugging the USB cable

      Controller Mode NES SNES VB Genesis 6 Saturn
      XInput A A R-Dpad → A A
      Switch B B R-Dpad ↓ B B
      Direct Input/PS3 - Y R-Dpad ← X X
      PS4* - X R-Dpad ↑ Y -
      PS5** - - - - Y

      * Requires user-provided keys

      ** Requires authentication USB dongle

      Use button combos to activate virtual buttons or change which axis the D-Pad is mapped to:

      Shortcut NES SNES VB Genesis 6  Saturn
      Home =  Start + ↑ + Select Select Select Mode L
      Digital = Start + ↓ + Select Select Select Mode L
      Left Analog = Start + ← + Select Select Select Mode L
      Right Analog = Start + → + Select Select Select Mode L
        Turbo Function SNES
        Enable/Disable Button

        ← + Select + Button
        Increase Rate*

        ← + ↑ + Select
        Decrease Rate*

        ← + ↓ + Select

        * Turbo rate is global and applies to all buttons with turbo enabled

          Source

          Customer Reviews

          Based on 14 reviews
          100%
          (14)
          0%
          (0)
          0%
          (0)
          0%
          (0)
          0%
          (0)
          100.0
          100.0
          K
          Kevin

          It works great! Came as expected an gave a new life to a controller that was non functional.

          B
          BONES
          Buy It

          Here is my long-overdue review of the SNES/SFC Reflex Ctrl. I absolutely love this board. It's my new go-to for using my favorite Super Famicom controller across various platforms, including MiSTer, PC, and Steamdeck. This controller is perfect for playing my favorite 2D platformers, whether they're new or old. I can't express enough how much I enjoy using a modern USB-C cable, which, along with incredibly low latency (less than 1ms), makes the experience seamless. Best of all, it's dongle-free! The Reflex Ctrl also offers a simple web GUI that allows you to customize your buttons and save your settings across all platforms directly to the board! It doesn't get any easier! Did I mention it can emulate a left or right analog stick for games frustratingly lacking d-pad support? Yeah, it's got that too. And switching modes is a breeze—just use a button combo, no need to access the web GUI. Overall, I give the SNES/SFC Reflex Ctrl 5 out of 5 stars. Given its price and rich feature set, I'll definitely consider purchasing more in the future.

          User picture
          J
          Jeff S
          Picked up the Genesis and Virtual Boy CTRL

          I just got done swapping out boards and giving it some play time. For the Genesis, I used a clear blue Retro-Bit 6-button pad as the host. What's cool is that there is a little white LED inside that gives you affirmation that a button has been pressed that you can see with a clear case. The Virtual Boy also went on well, and the red PCB was a nice touch. Both are working perfectly, and I'm excited to try out the virtual boy controller on all kinds of non-analog twin stick games, like Xeno Crisis, as well as Virtual Boy emulation!

          t
          threeandthree
          Probably the best way to use an SNES controller over USB

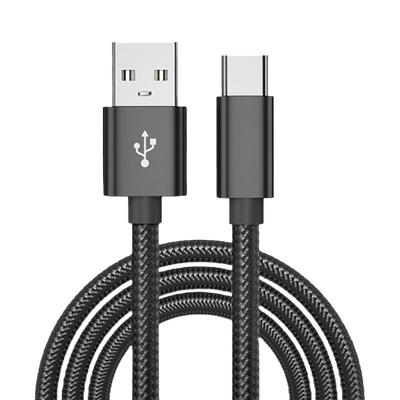

          Its an easy installation and works great. I confused myself a little on the initial firmware setup but it's been very easy since then. Being able to switch between Xinput/Dinput/Switch modes very easily is very convenient and I like the design with the short connector cord, pairs well with the braided USB A to C cables sold here. Eagerly awaiting the Genesis version.
