Elevate your classic gamepads to USB capabilities with Reflex CTRL! Boasting the quickest response times of any USB controller available commercially, Reflex CTRL all but eliminates dropped inputs. Featuring the highly versatile, upgradeable, and customizable GP2040-CE firmware, your gaming will never be the same!

How it works:

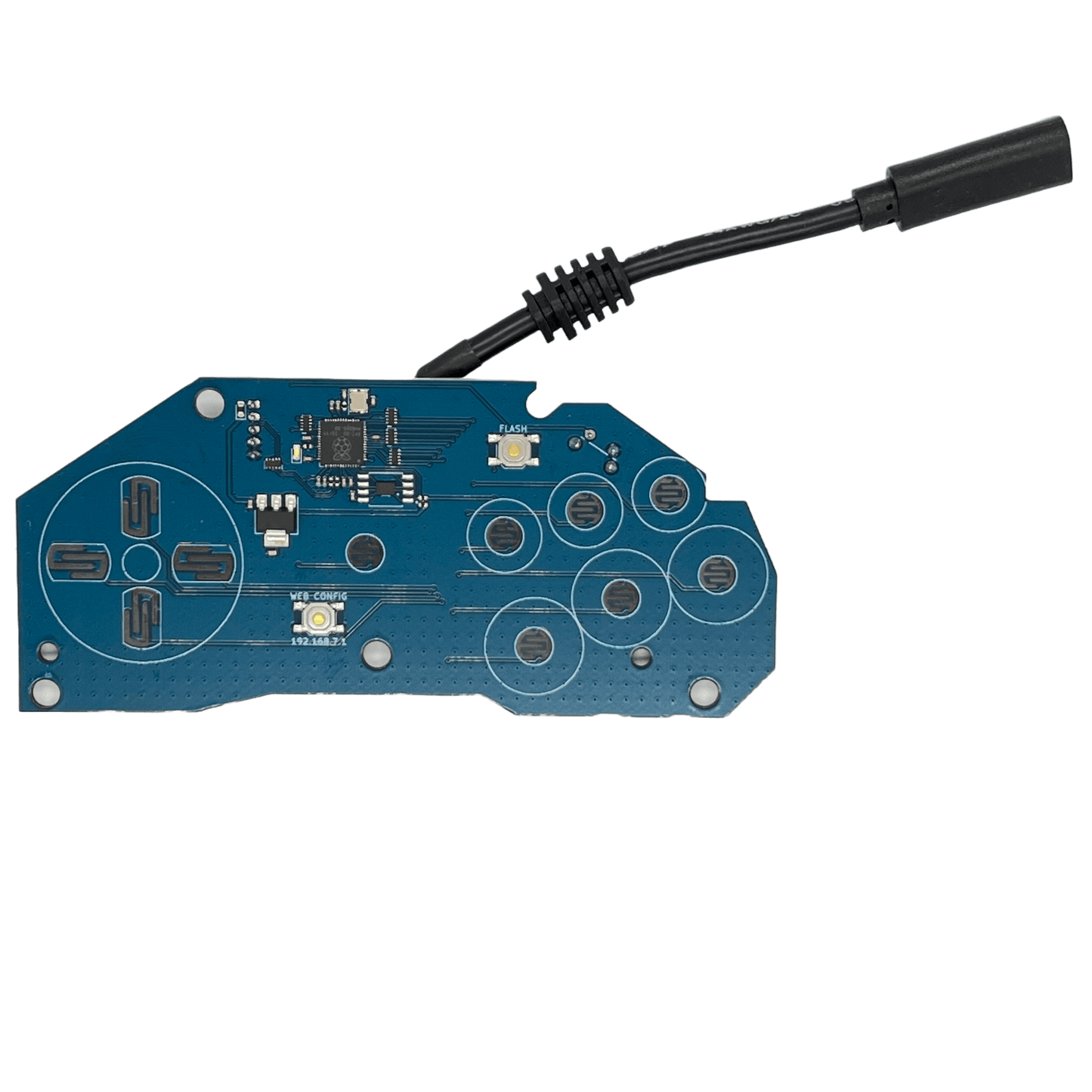

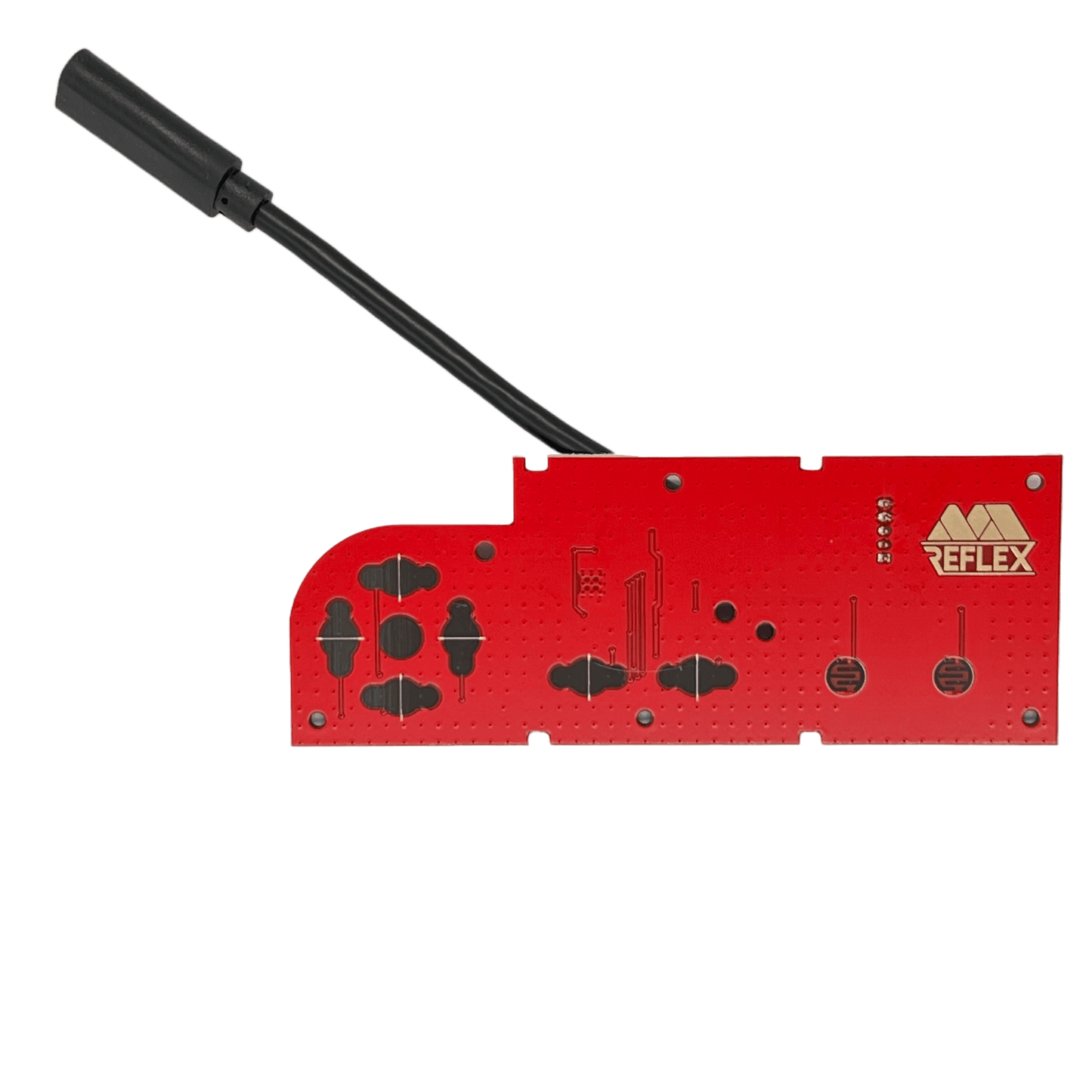

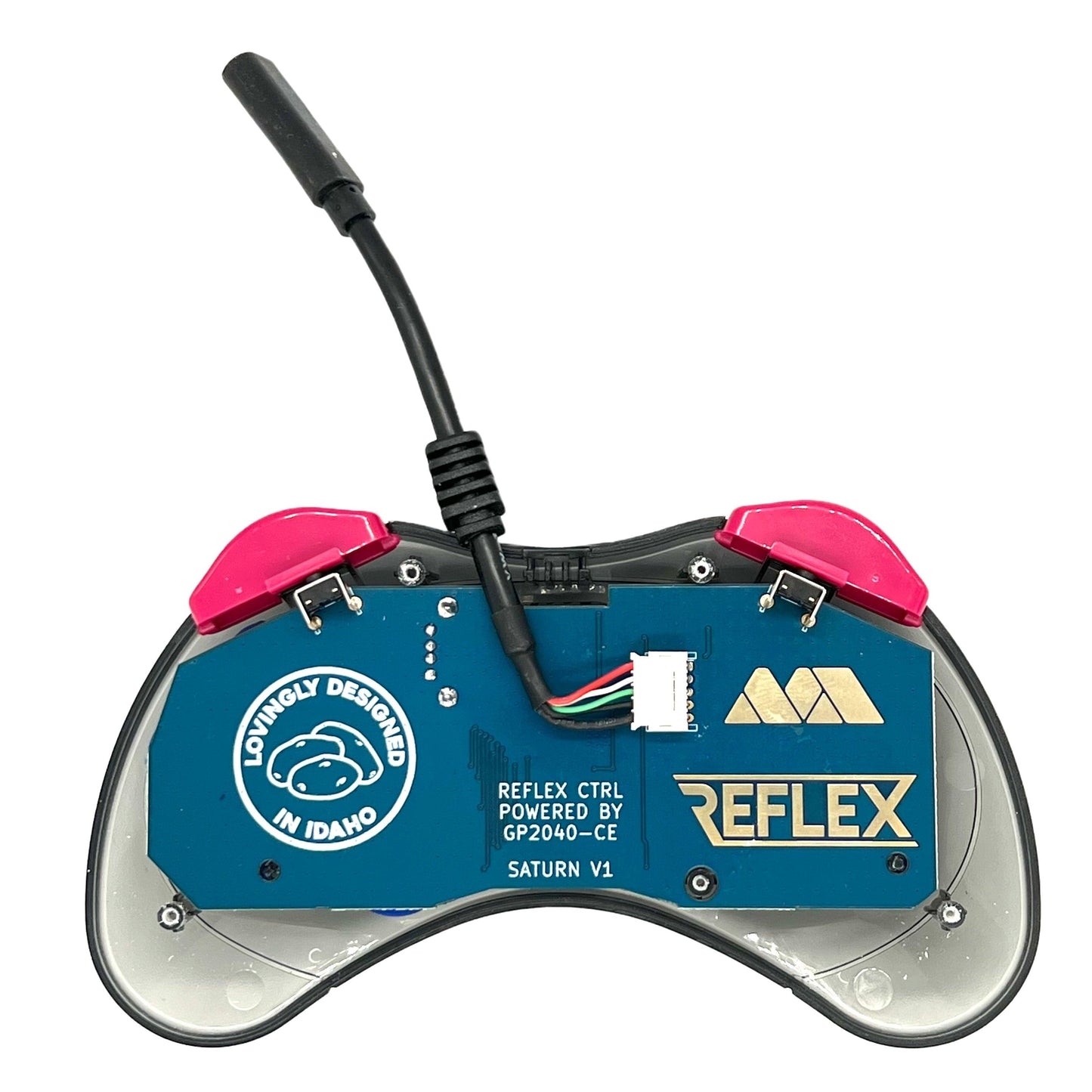

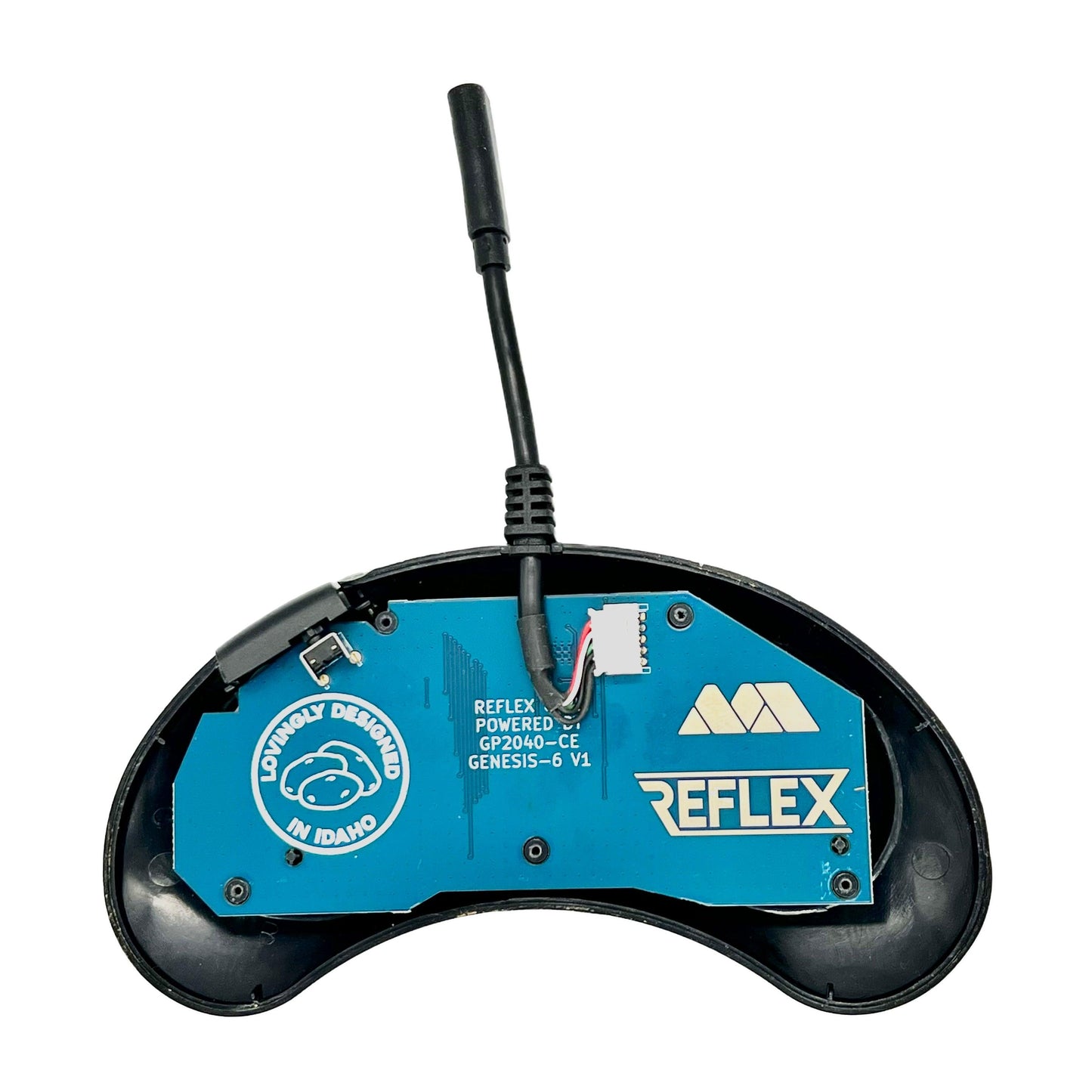

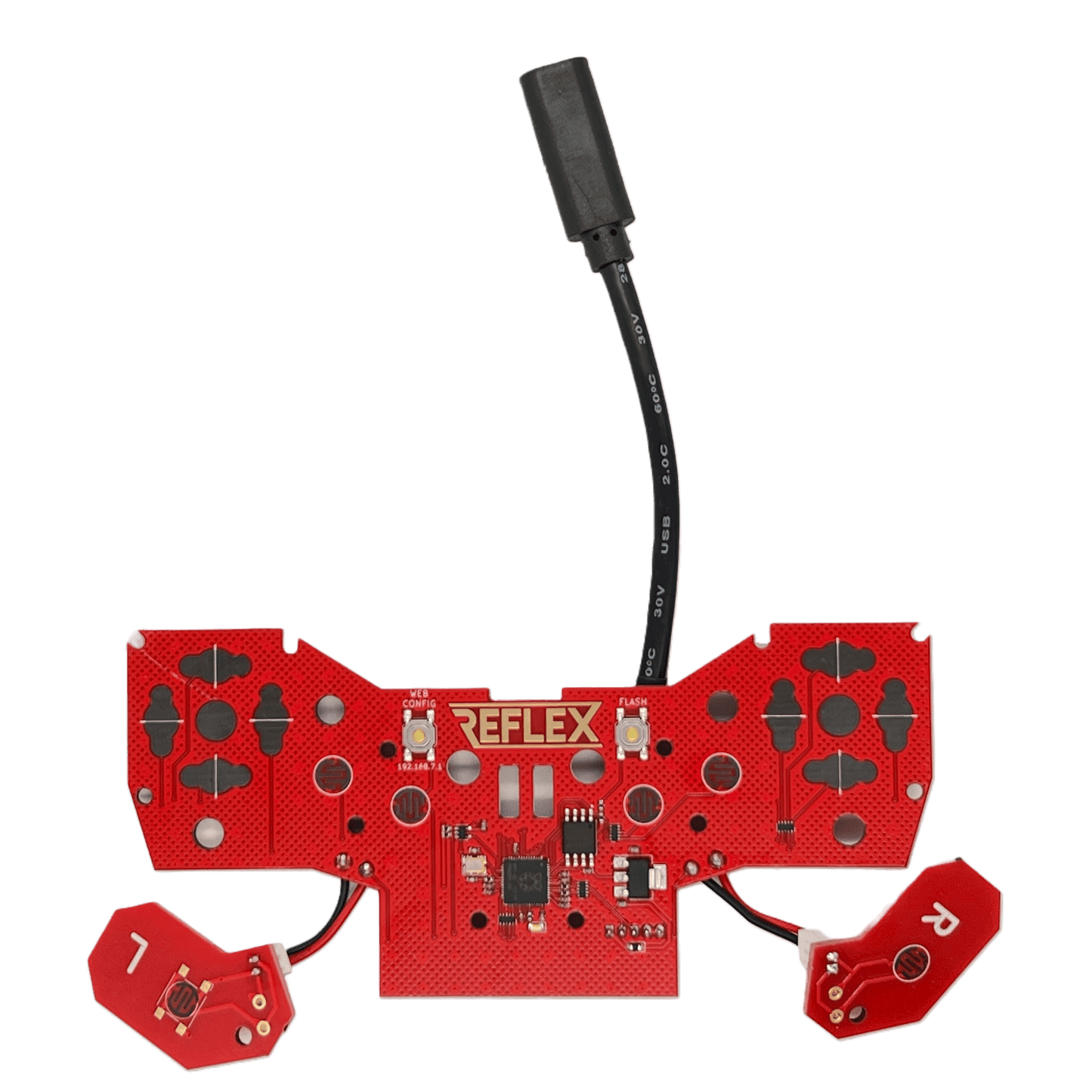

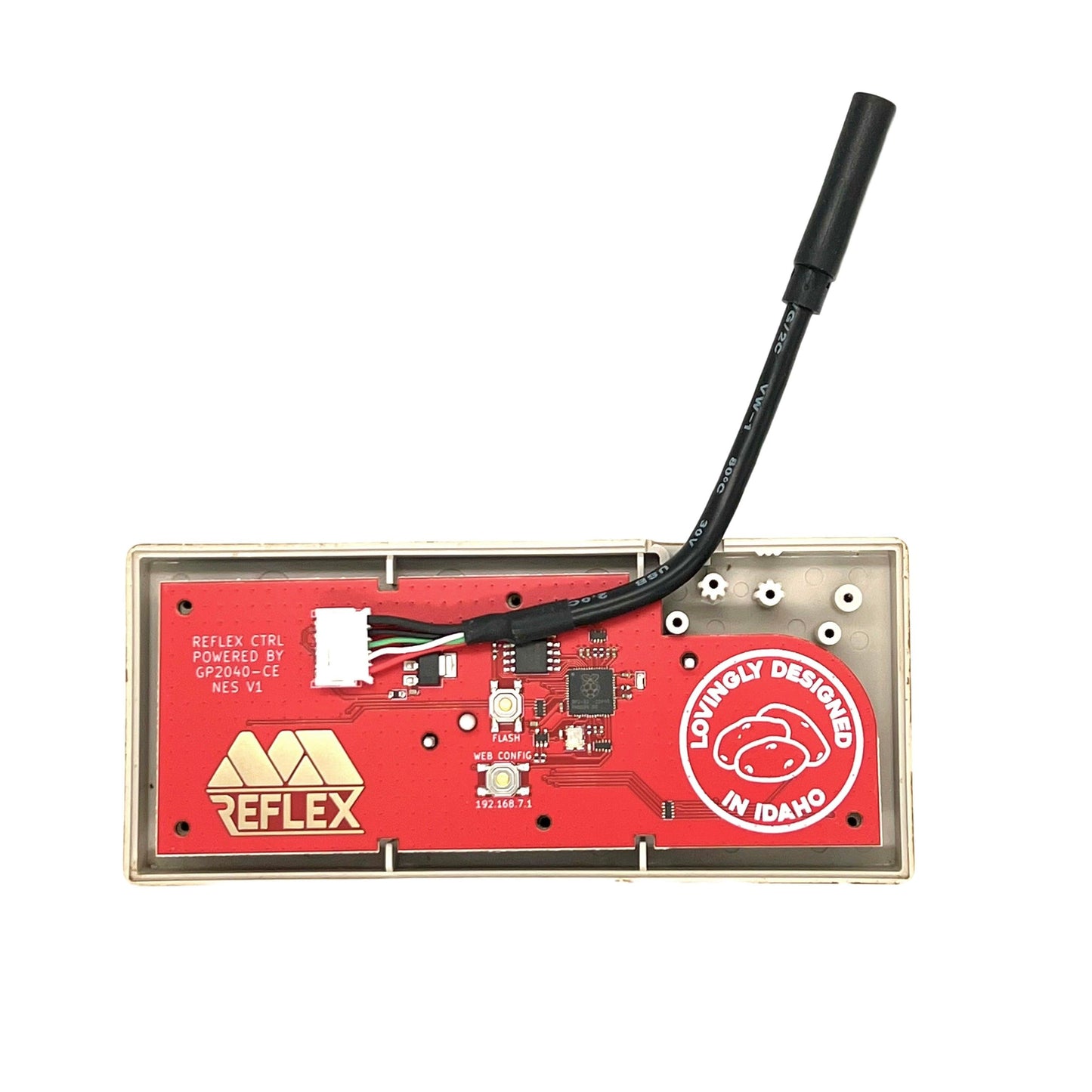

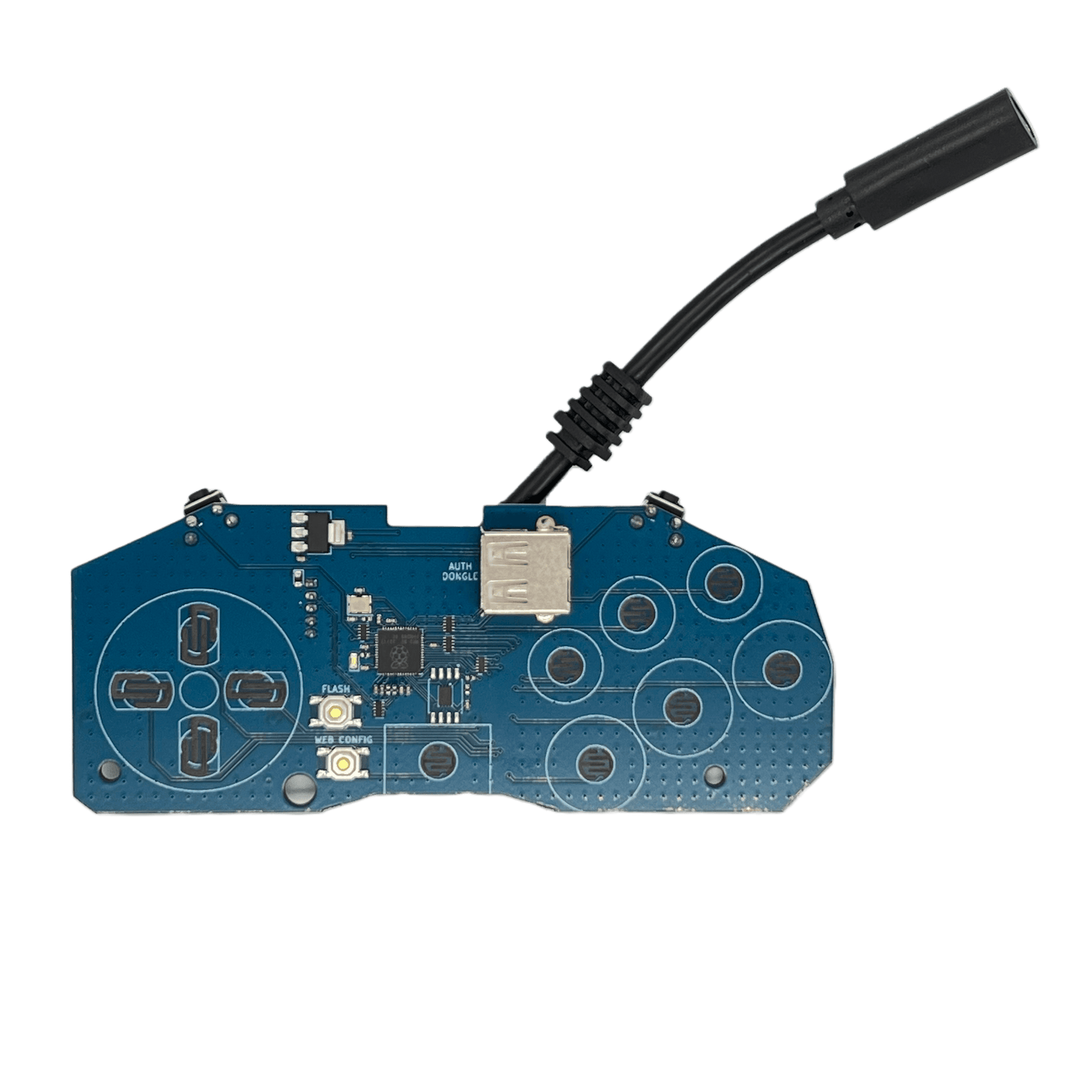

CTRL boards are PCB replacements with a short USB-C female pigtail cable. Unscrew your controller, remove the OEM circuit board, optionally replace the rubber membranes (coming in 2024?), fit the Reflex CTRL PCB, route the USB-C Female cable, and re-assemble the controller. Users provide their own USB-C cables

Includes:

  • Circuit Board
  • USB-C Female cable (50mm)
  • NOT INCLUDED: USB-C to USB-A cable for connecting to target device. USB-C to USB-C cables are not supported.

Features:

  • Open-source, powered by the amazing GP2040-CE
  • 0.8 ms latency
  • Carbon-coated button pads (just like OEM) for consistency and durability
  • Short USB-C female cable protrudes from the controller so you can use your preferred USB cable
  • ESD protection for all inputs
  • Update firmware: Select + Start + Up while plugging in USB
D-pad Mode SNES
D-pad Select + Start + ↓
Left Analog Select + Start + ←
Right Analog Select + Start + →



  •  To change controller modes, hold the following button while plugging in USB
Controller Mode SNES
XInput A
Switch B
Direct Input/PS3 Y
PS4* X
    • *(requires user-provided keys): Hold X while plugging in USB
  • Built-in turbo (enable in web GUI):

Turbo Function SNES
Enable/Disable Button
← + Select + Button
Increase Rate*
← + ↑ + Select
Decrease Rate*
← +
↓ + Select
    • * Turbo rate is global and applies to all buttons with turbo enabled
  • Web GUI for deep customization
    • Hold Start while plugging in USB
    • Open web browser and navigate to 192 dot 168 dot 7 dot 1

Installation:



Configuration:
