Kits de esqueleto MiSTer (sin estuche)

Kits de esqueleto MiSTer (sin estuche)

MiSTER FPGA
Regular price $450.00
Shipping calculated at checkout.
Estilo
Out of stock - Back in soon

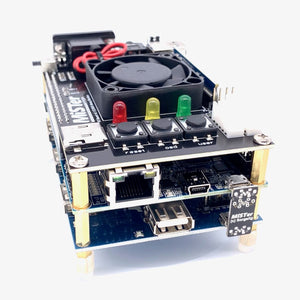

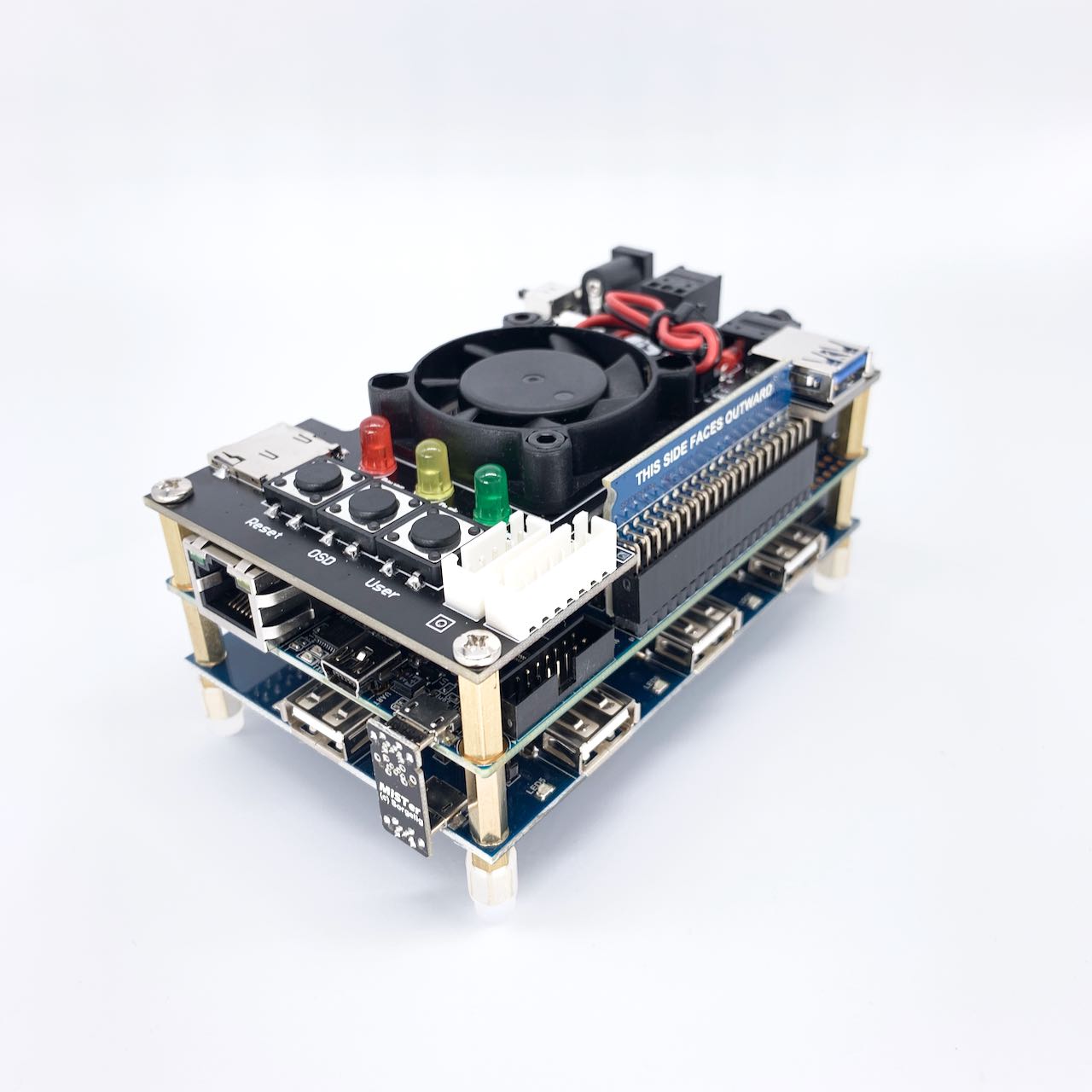

NOTA: Las imágenes muestran puentes USB, pero los paquetes ahora incluyen soportes USB.

Incluye:

  • DE10-nano
  • SDRAM de 128 MB (1x)
  • Placa IO (analógica o digital)
  • Elija E/S estándar si desea vídeo analógico integrado: permite salida de vídeo dual digital + analógico.
  • Elija Digital IO si desea un interruptor de alimentación integrado y 40 pines GPIO adicionales (actualmente sin usar)
  • Hub USB, soporte y divisor + interruptor
    • El divisor + interruptor es solo para E/S analógicas
    • Digital IO vendrá con un pequeño conector de CC para enrutar la energía desde DE10-nano al concentrador USB
  • Entrada ADC
  • Fuente de alimentación estadounidense de 110V 5V 2A
    • ¡Fuente de alimentación mejorada disponible aquí !
  • Tarjeta micro SD de 16 GB con todos los archivos de código abierto
    • ¡Tarjetas micro SD de mayor capacidad también disponibles aquí !

Instrucciones de E/S digitales:
  • Conecte la fuente de alimentación DE10-nano al conector de CC de la placa digital IO
  • Conecte el conector CC del DE10-nano al conector CC del concentrador USB utilizando el cable puente CC-CC incluido
  • Utilice el interruptor de alimentación de la placa Digital IO para controlar la alimentación de MiSTer
