REFLEX ADAPT DISPONIBLE MAINTENANT !

Monsieur FPGA mt32-pi
Monsieur FPGA mt32-pi
Monsieur FPGA mt32-pi
Monsieur FPGA mt32-pi
  • Charger l'image dans la galerie, Monsieur FPGA mt32-pi
  • Charger l'image dans la galerie, Monsieur FPGA mt32-pi
  • Charger l'image dans la galerie, Monsieur FPGA mt32-pi
  • Charger l'image dans la galerie, Monsieur FPGA mt32-pi

Monsieur FPGA mt32-pi

Prix normal
$45.00
Prix réduit
$45.00
Prix normal
Épuisé
Prix unitaire
par
Frais d'expédition calculés lors du paiement.

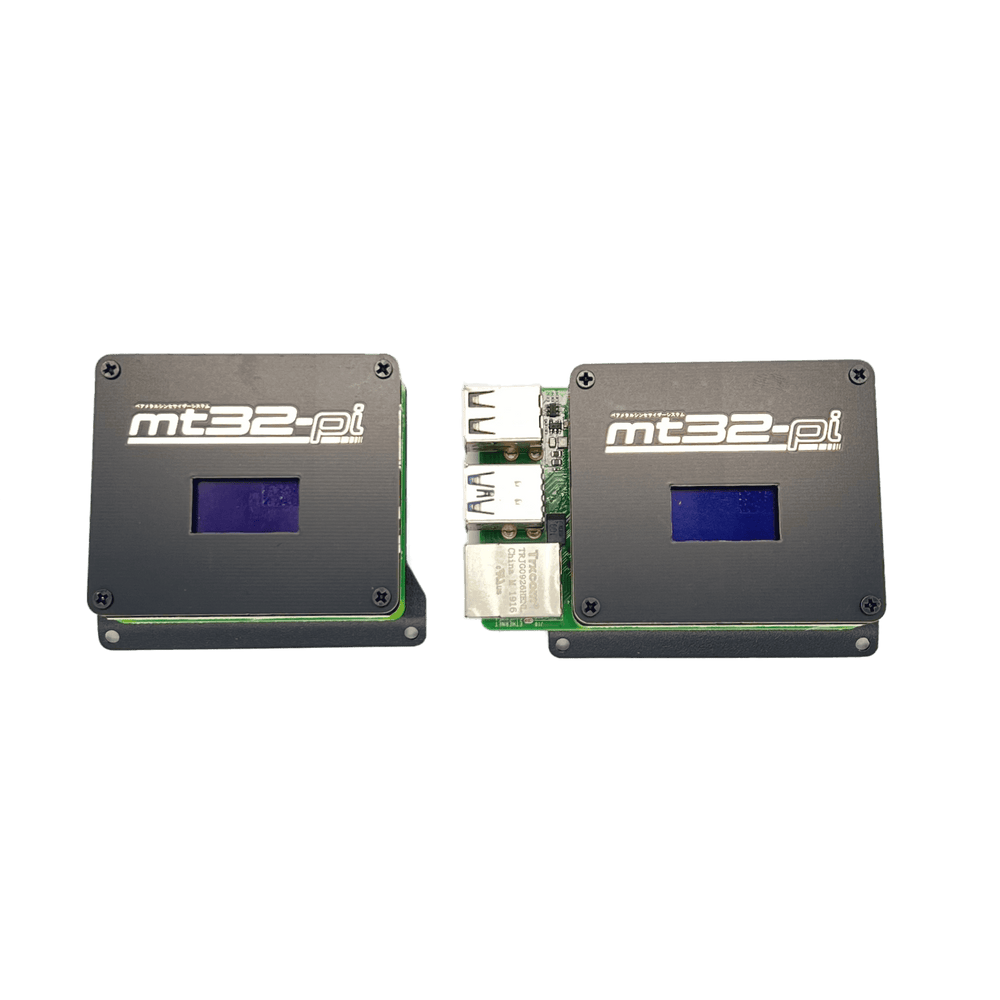

mt32-pi est une émulation Raspberry Pi nue du célèbre appareil MIDI Roland MT32. Il a été créé par d0pefish . Montrez-lui un peu d'amour !

Caractéristiques:

  • Une interface simple pour mt32-pi (pas de boutons ni de molettes - utilisez l'OSD :)

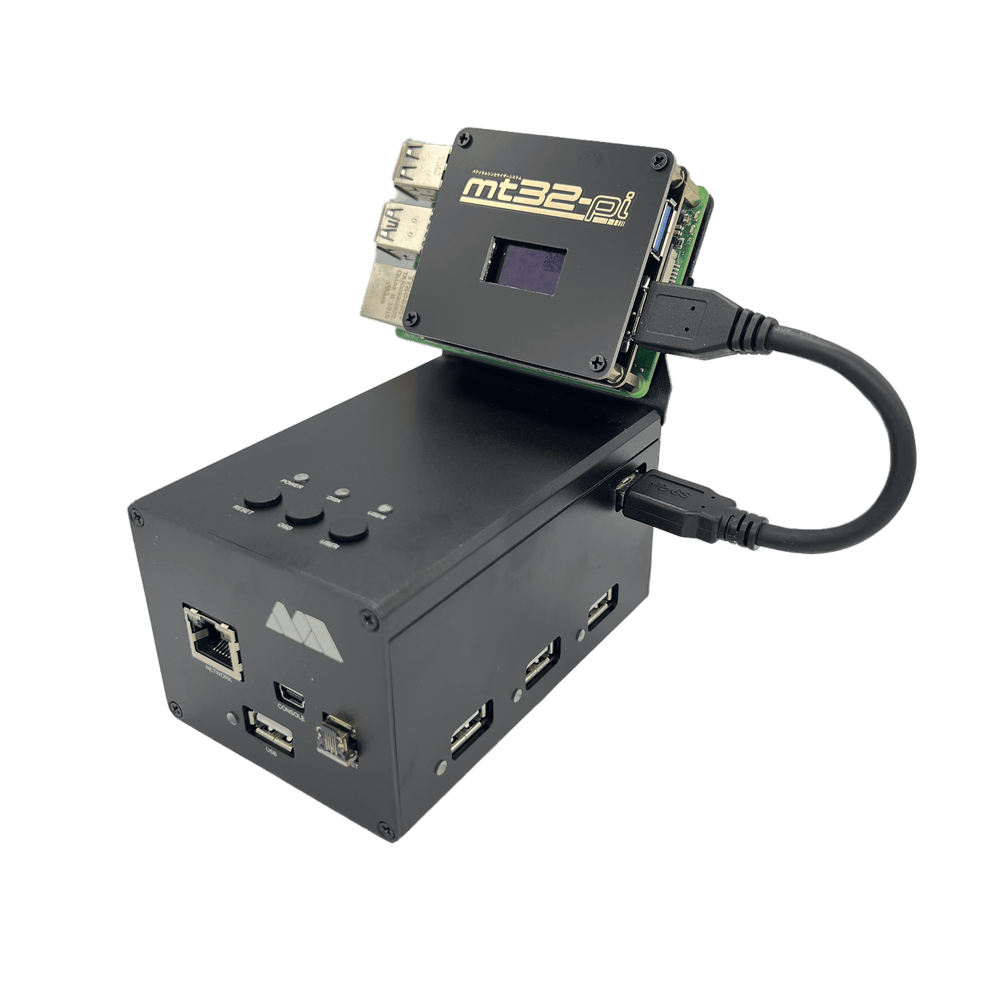

  • Comprend un support à monter sur le boîtier en aluminium :)
  • compatible avec Pi Zero 2 W, 3A+, 3B et 4 (non inclus)
  • Comprend une cale PCB à utiliser avec Pi Zero 2 W
  • Comprend un câble USB 3 A mâle révisé vers USB 3 A mâle révisé.
    • Fonctionne également avec le câble SNAX USB 3
  • Alimentation améliorée fortement recommandée

Installation:

  • Suivez les étapes ici : https://github.com/dwhinham/mt32-pi/wiki/MiSTer-FPGA%3A-Setup-and-usage
  • Configurer mt32-pi.cfg
    • Option 1: téléchargez mon mt32-pi.cfg
    • Option 2 : modifiez mt32-pi.cfg et définissez :
      • [contrôle]
        • schéma = aucun
        • monsieur = allumé,
      • [écran LCD]
        • tapez = ssd1306_i2c
        • hauteur = 64
  • Lorsque vous allumez le mt32-pi, vous devriez voir un écran de démarrage MiSTer. Sinon, vérifiez le câble reliant le mt32-pi au port utilisateur.

Customer Reviews

Based on 20 reviews
80%
(16)
20%
(4)
0%
(0)
0%
(0)
0%
(0)
T
TBoneSF

Works great...once I realized I had the wrong DIP settings for the Digital IO board. The switches on the DE10-Nano are in reverse order with SW3 being on the left and SW0 on the right.

E
Etienne Lavallée
Amazing stuff

Its just amazing hearing how good dos games can sound with the mt32. I was hesitant at first, but Im glad I tried it out.

J
Jeff S
Beautiful Sound

This makes games with MT32 support sound absolutely beautiful. Roland MT-32 was something I always saw on the sound options as a kid, but I generally had to stick to Adlib or eventually Sound Blaster. MT-32 was just this unobtainable dream, and to experience what I missed now on games I have fond memories of is absolutely a treat!

J
Josh
Amazing!

Loving the hat on this - very clean.

J
John
Tricky to put together but a great device

Bought this for better music in the ao486 core. Was not disappointed. Using with a RPi 3B+ from a retro pie build I no longer need. Easy to setup with the Mister. Config directions need to include i2c output for most setups.
