TLDR: si NECESITA salida de video dual y no le importa la posible SDRAM dual, obtenga la E/S analógica. De lo contrario, consiga la placa Digital IO. Actualmente, el núcleo de PSX funcionará con una SDRAM única, pero la SDRAM dual podría permitir funciones adicionales.
Características comunes entre IO analógica y estándar:
- Salida HDMI a través del DE10-nano
- Ventilador
- Botones y LED del sistema
- Salida de audio digital mini TOSLINK
- Puerto de usuario para SNAC y mt32-pi
- Ranura para tarjeta SD secundaria solo para núcleos de computadora (no te atrevas a intentar usarla como almacenamiento adicional para juegos jaja)
- Cabeceras JST para ampliar la alimentación, los botones y los LED
Características únicas de E/S analógicas:
- Salida de vídeo analógico (la placa IO digital puede emitir vídeo analógico utilizando un adaptador HDMI a VGA)
- Salida de vídeo dual (analógica + digital) (Digital IO puede emitir vídeo analógico o digital, pero no ambos)
- Salida de audio analógica

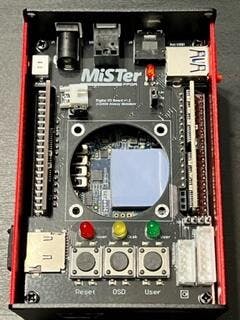

Características únicas de Digital IO:
- Interruptor de alimentación
- Salida de audio TOSLINK
- Entrada ADC para entrada de audio (NO SALIDA DE AUDIO :)
- Permite SDRAM secundaria
Purchased the fan plate/heatsink combo as an inexpensive way to keep the MiSTer at stable temperatures - I have no need for the features of the IO boards at this time - and found it quite effective. I would love for there to be an option for an upgraded fan since the included fan generates a fair amount of noise (a no-fan option would suffice as well, as it allows users to use their fan of preference).
Mister is awesome!
MiSTer FPGA Analog and Digital IO Boards
I ended up buying two boards from MiSTer. When I first started, I grabbed the Fan Plate and liked how it completed my basic stack. Once I was ready to upgrade my MiSTer build, I went with the Digital IO board. Love the look, how sturdy the power switch is and using the onboard buttons is a huge improvement to general use. Very happy with my purchases!
So happy with my Mister FPGA kit from Mister Addons! This thing is a total game changer. Looks and runs amazing on CRT and other monitors. Love how compact the unit is. Very easy to get up and running. Mister Add-ons was super helpful with my order and very patient with my questions (and fixing an order mistake I made) - thank you! I will definitely be ordering more mister goodies from Mister Addons!
